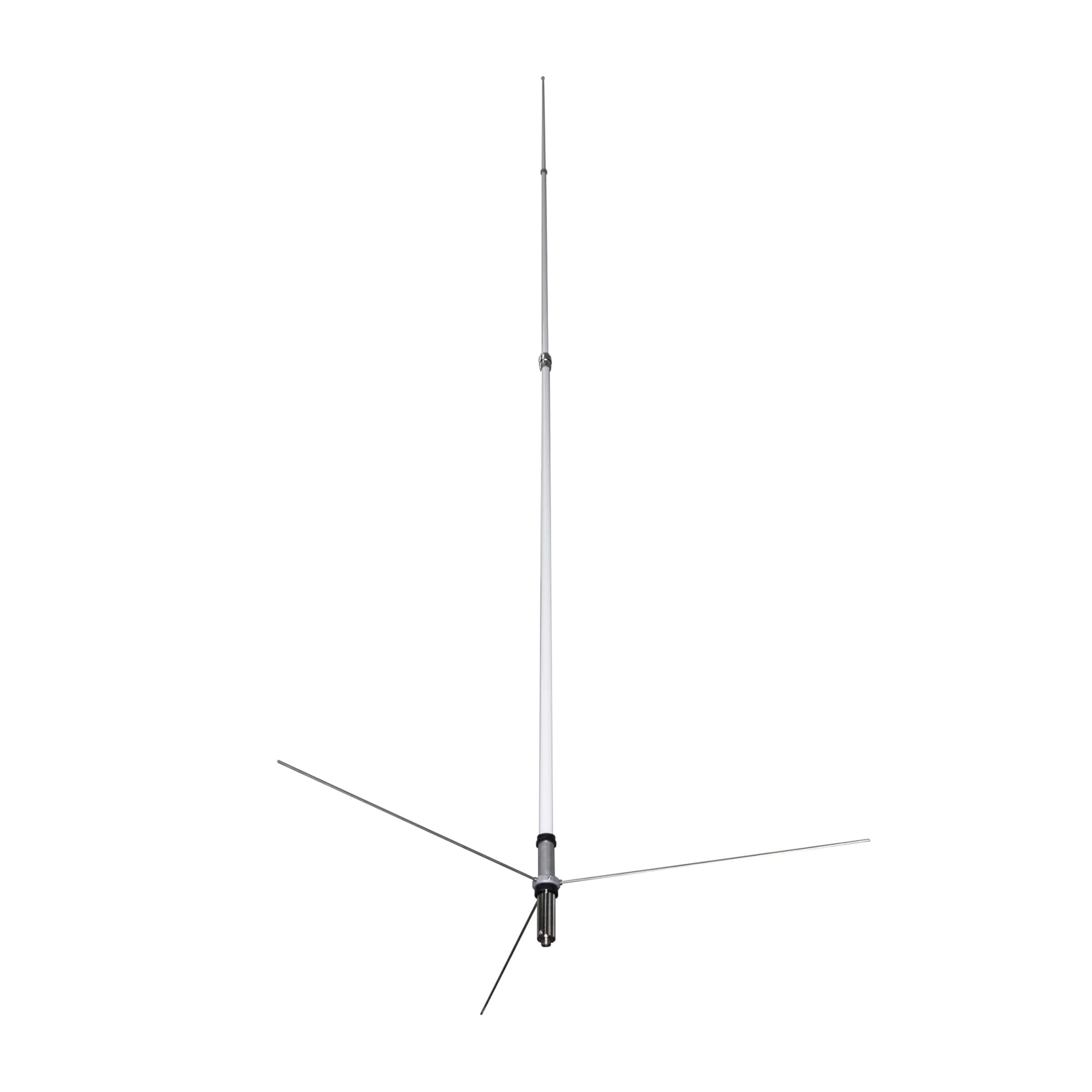

Tram 200-Watt Dual-Band 3-Section Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector, 17-Ft. Tall, White

Choose Tram for your next antenna installation project with this White 200-Watt Dual-Band 3-Section Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector. This 17-ft. antenna has 2 frequency ranges: 144 MHz to 148 MHz and 430 MHz to 450 MHz and can withstand winds up to 90 MPH. Stay connected with Tram.

• 200 watts power rating
• 17 ft. tall
• Heavy-duty, 3-section fiberglass construction; max wind speed of 90 MPH
• Special joint design connects fiberglass tubing so sections maintain the same strength as a single-section design
• 144 MHz to 148 MHz; 4 MHz bandwidth; 8.3 dBd gain
• 430 MHz to 450 MHz; 20 MHz bandwidth; 11.7 dBd gain
• 5/8 wave 3 elements c-load, 5/8 wave 8 elements c-load; 20-1/2 in. radial length
• Radiator and coil are hermetically sealed in fiberglass tubing to assure low SWR in all weather
• DC ground construction allow static dissipation for low noise ratio and maximum lightning protection
• Vertical polarization with 50 ohms impedance
• UHF (SO-239) connector
• Mast diameter accepted: 1-3/16 in. to 2-7/16 in.

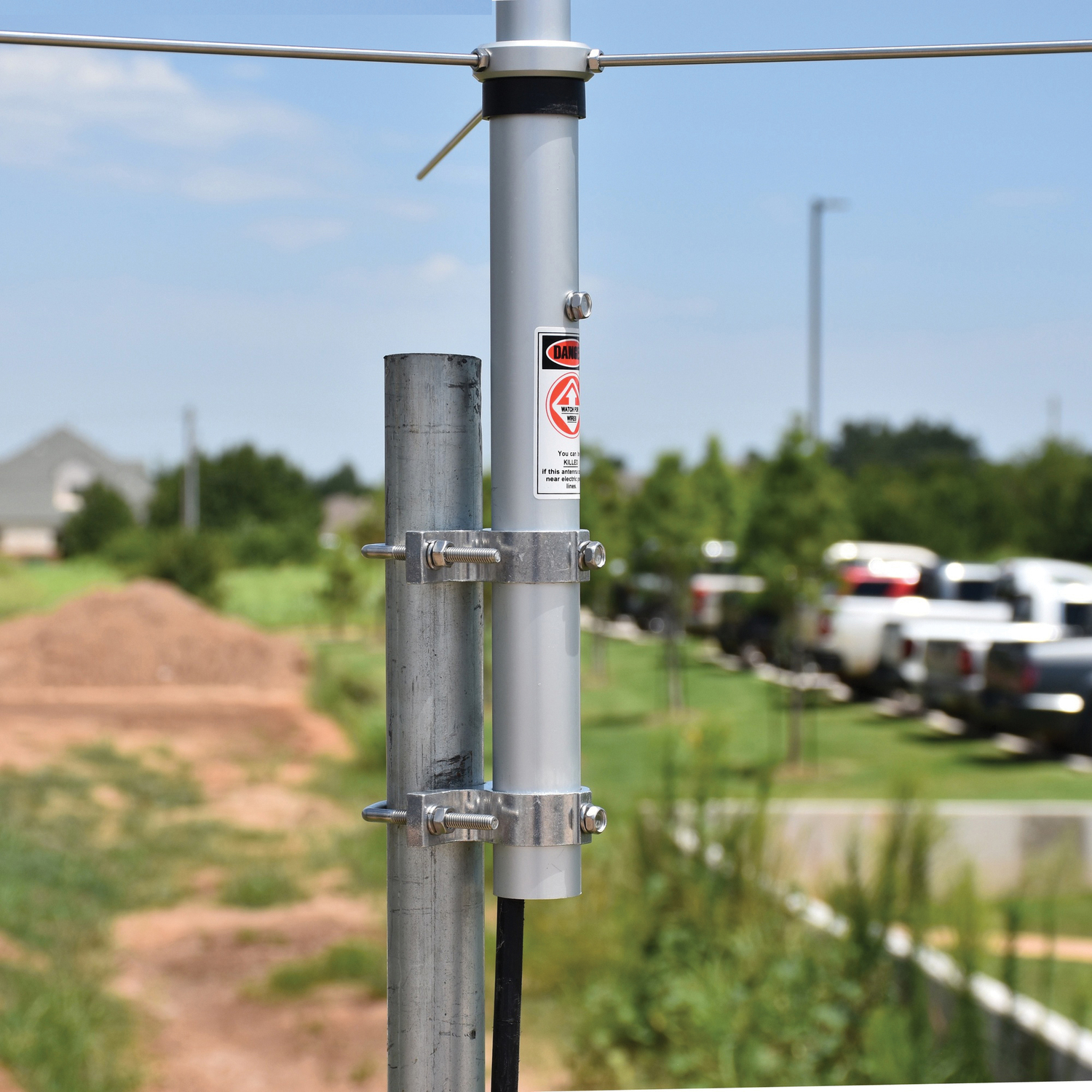

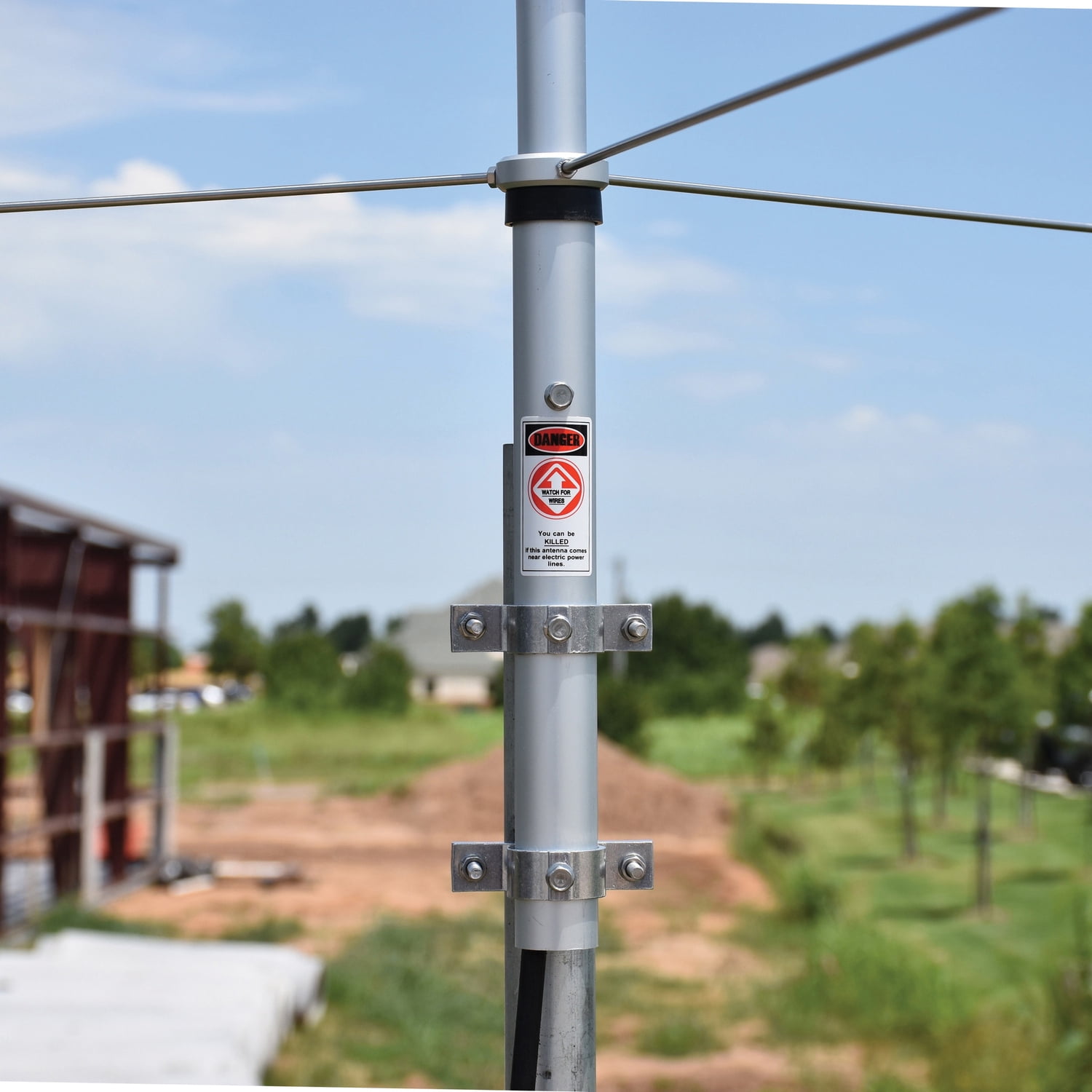

• Includes mounting bracket with 3 stainless steel radials
• White
