KFFKFF Hydraulic Steering Kit for 90HP Outboard Engines, Marine Steering System with 24 ft High-Strength Hoses, 2.5 MPa Helm Pump, Two-Way Lock Cylinder, Designed for Single-Engine Boats

<div> <h3> <strong>Product Description</strong><br> </h3> <strong> <div>Hydraulic Steering System, 90 HP Capacity</div> </strong> <div> <div>This hydraulic steering kit is suitable for outboard engines with a capacity of up to 90 HP. It comes equipped with a hydraulic helm pump, a steering cylinder, two durable high-pressure hoses, and all necessary installation hardware. With a maximum working pressure of 2.5 MPa, it is an excellent choice for replacing outdated systems or enhancing your boat's steering performance.</div> </div> </div> <div> <div> <strong> <div>Durable Steel Steering Column</div> </strong> <div> <div>Designed with a robust steel shaft, this hydraulic steering kit ensures durability and offers resistance to corrosion caused by seawater.</div> </div> <strong> <div>Dual-color port caps in red and blue for enhanced identification and organization.</div> </strong> <div> <div>This hydraulic steering system for boats is designed with red and blue inlet/outlet caps, making identification and installation straightforward.</div> </div> <strong> <div>Streamlined and Space-Saving Pump Design</div> </strong> <div> <div>This hydraulic steering helm pump features a space-saving design, making it suitable for installation in confined helm station areas.</div> </div> <strong> <div>Durable High-Pressure Hoses</div> </strong> <div> <div>This hydraulic steering system for boats comes with two durable high-pressure hydraulic hoses featuring 5/16" quick-connect fittings. Designed to ensure flexible installation, dependable connections, and consistent functionality for various types of boat setups.</div> </div> <strong> <div>Wide Compatibility</div> </strong> <div> <div>This hydraulic steering kit is compatible with a variety of popular outboard engine models, making it an excellent choice for fishing boats, yachts, patrol vessels, sailboats, and other types of watercraft.</div> </div> <strong> <div>Compatible with 5/8"-18 UNF Thread</div> </strong> <div> <div>This hydraulic steering kit for boats is designed with a standard 5/8"-18 UNF thread, ensuring compatibility with most outboard steering wheels. It allows for a straightforward installation process, enabling you to use your current steering wheel without the need for adapters or additional adjustments.</div> </div> </div> </div> <div> <h3> <strong>Specifications</strong><br> </h3> <div>Item Model Number: HSX-90 HP</div> <div>Applicable Engine Horsepower: ≤90 HP</div> <div>Max Working Pressure: 2.5 MPa / 363 PSI</div> <div>Hydraulic Cylinder Capacity: 73 ml</div> <div>Piston Bore Inner Diameter: 1.0 in / 25 mm</div> <div>Piston Rod Inner Diameter: 0.6 in / 14 mm</div> <div>Stroke: 7.9 in / 200 mm</div> </div> <div> <h3> <strong>Package Content</strong><br> </h3> <div>1 x Hydraulic Steering Pump</div> <div>1 x Hydraulic Steering Cylinder</div> <div>2 x High-Pressure Hydraulic Hoses</div> <div>1 x Accessory kit</div> <div>1 x User Manual</div> </div>

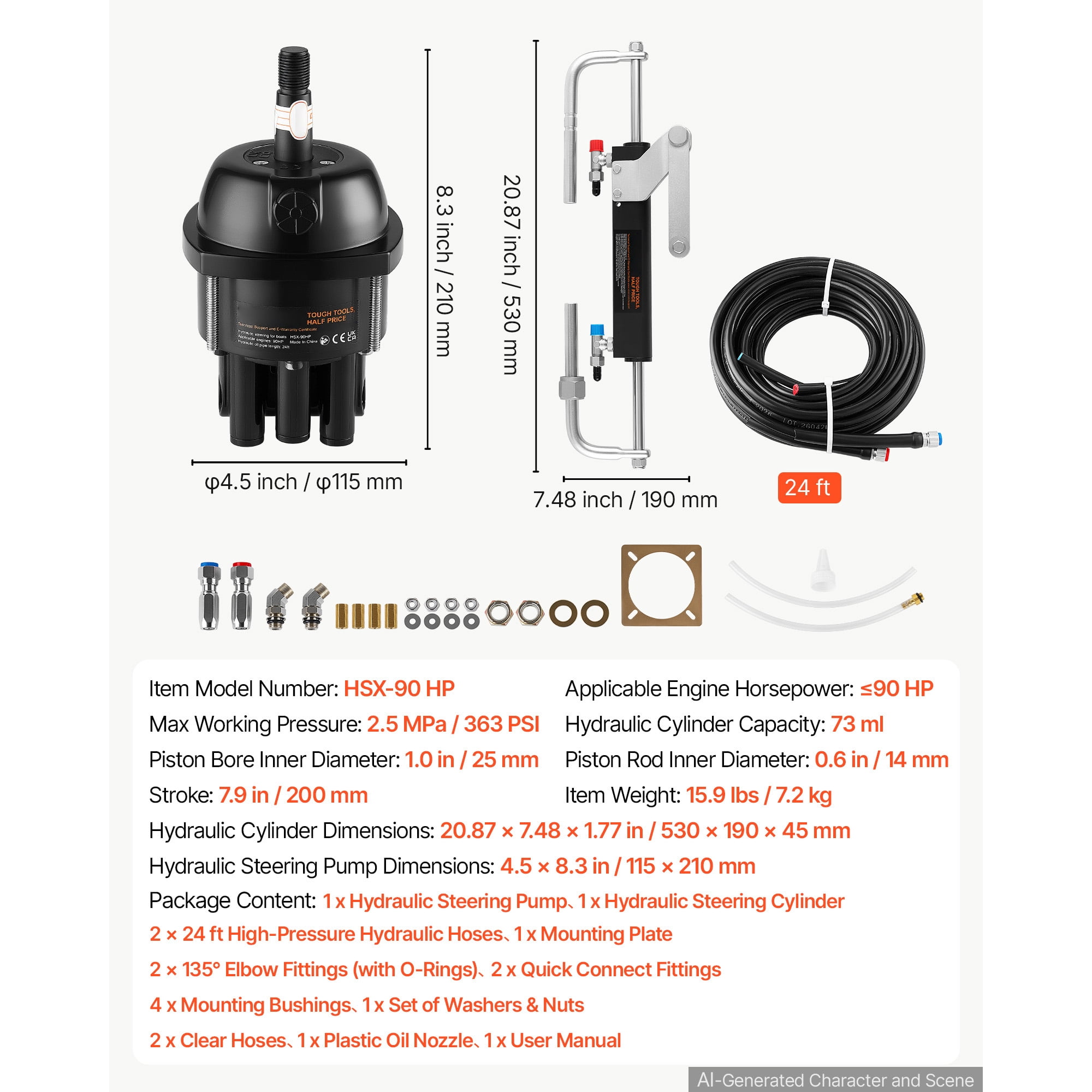

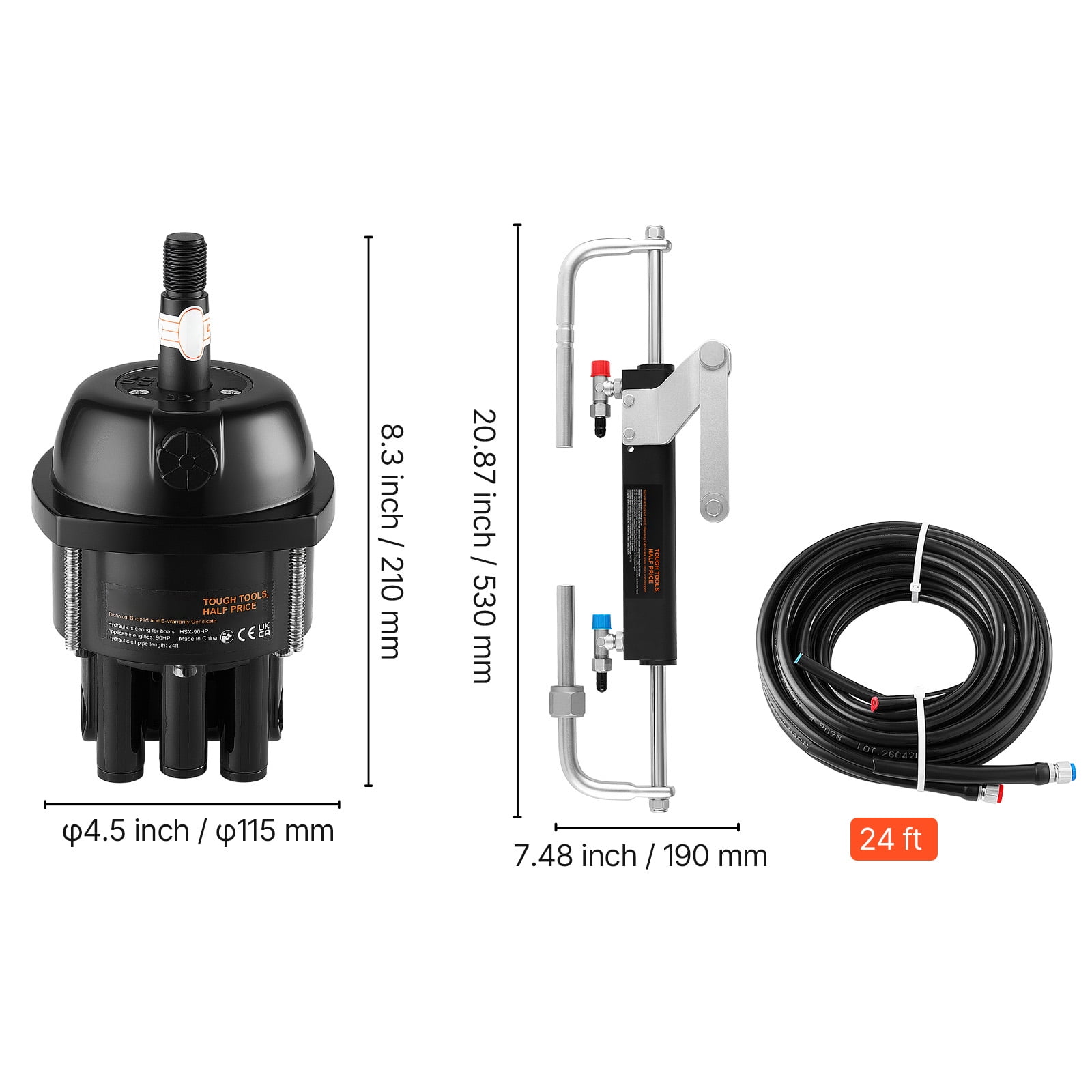

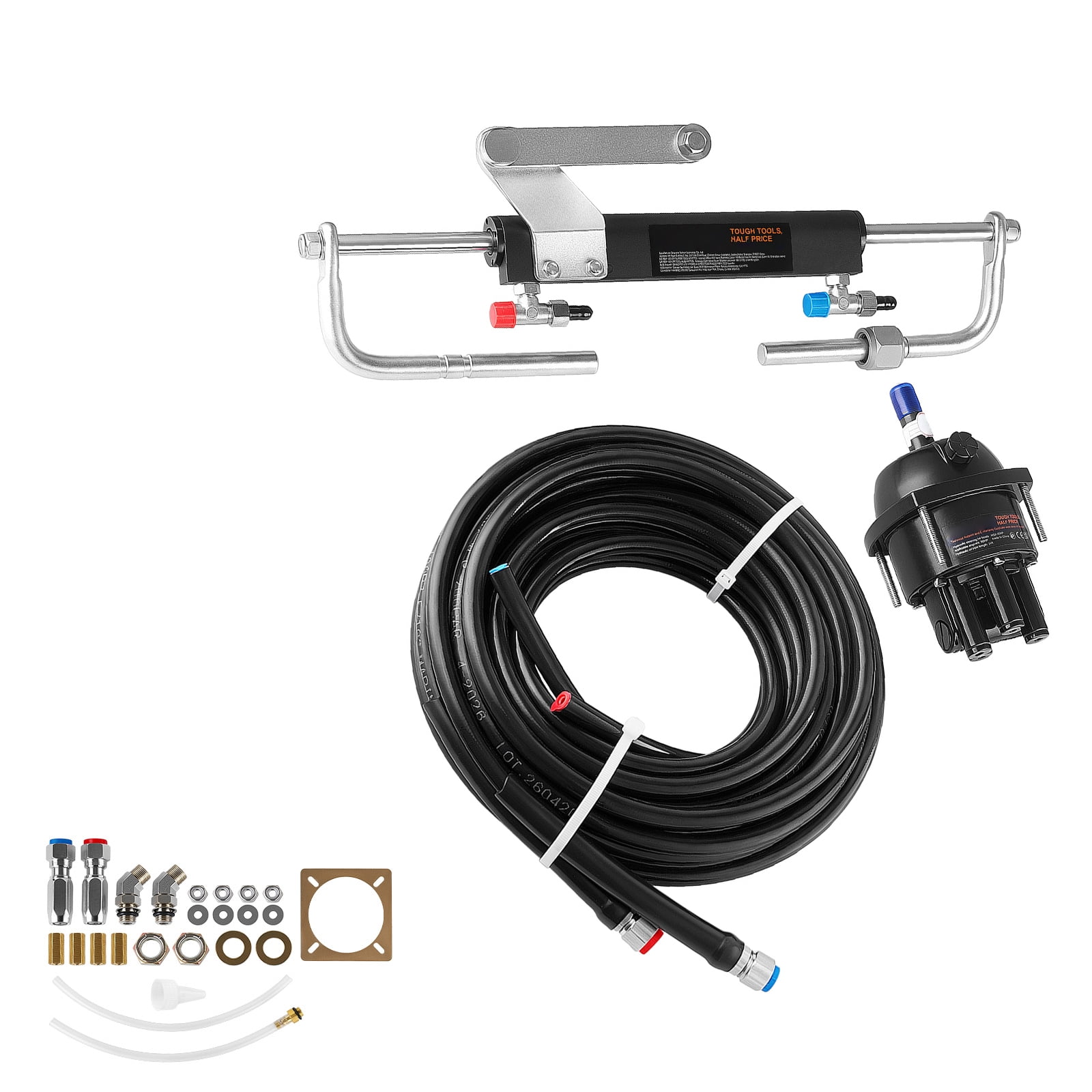

• 90 HP Hydraulic Steering System: Comes with a hydraulic pump, steering cylinder, two high-pressure hoses, and all necessary accessories. This system serves as a reliable replacement for worn-out or malfunctioning hydraulic steering setups.

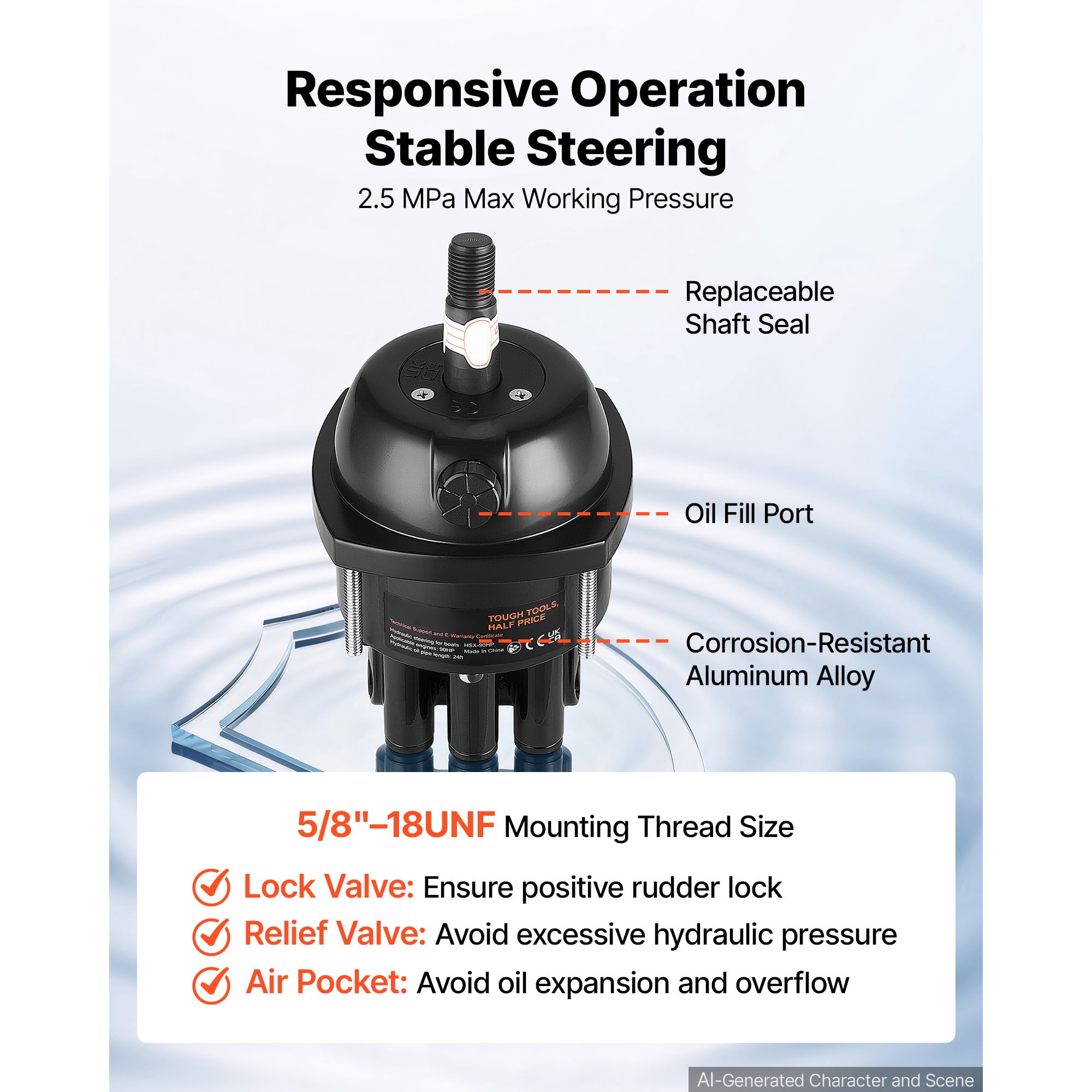

• Durable Hydraulic Steering Pump: This hydraulic steering pump is designed with a robust structure and offers smooth and responsive steering, capable of handling a maximum pressure of 2.5 MPa. The housing is crafted from high-strength aluminum alloy, ensuring resistance to saltwater corrosion and spray.

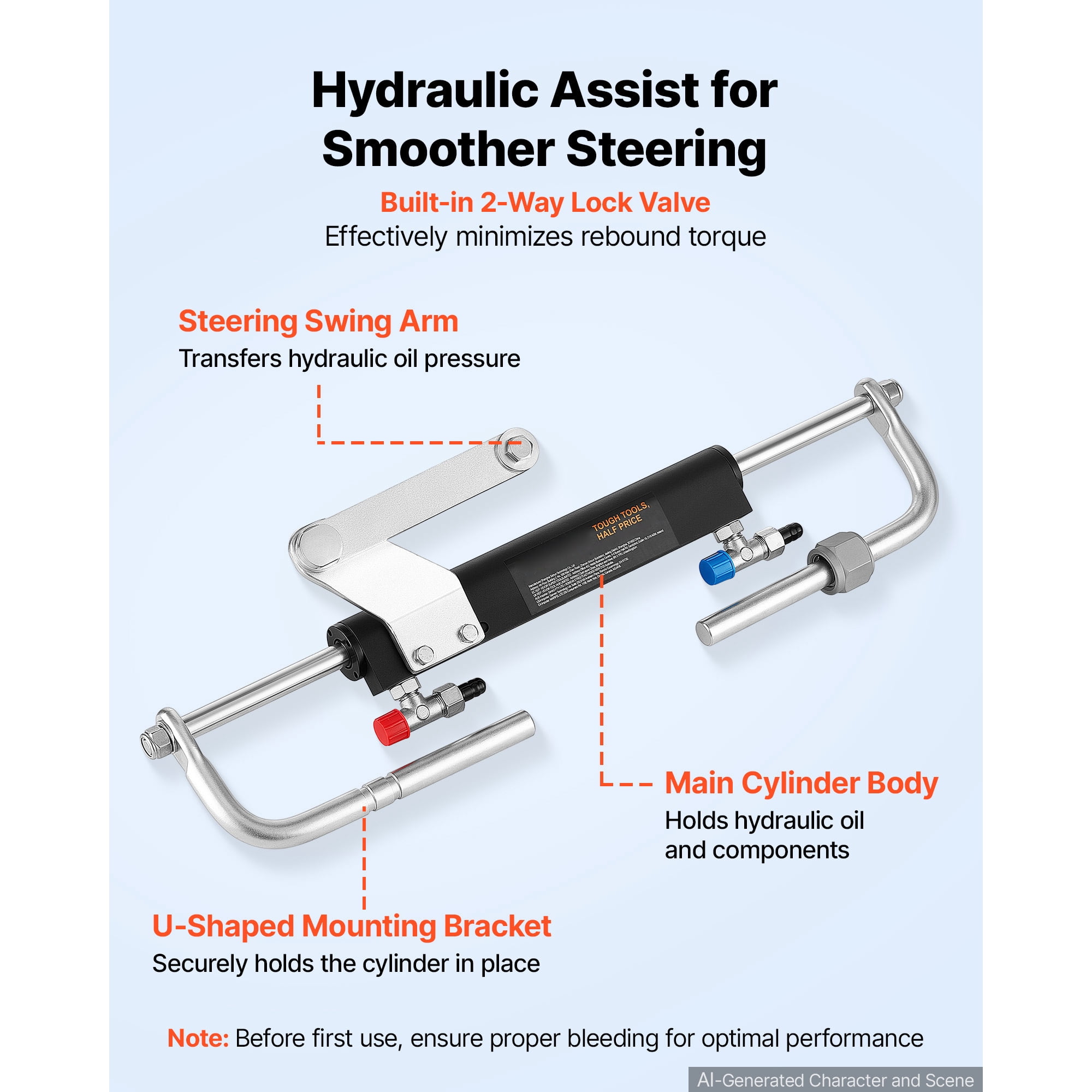

• Robust Hydraulic Cylinder: Designed with a solid construction and reliable sealing elements, this hydraulic steering cylinder ensures accurate control and extended durability. It supports consistent steering performance, even in challenging marine environments.

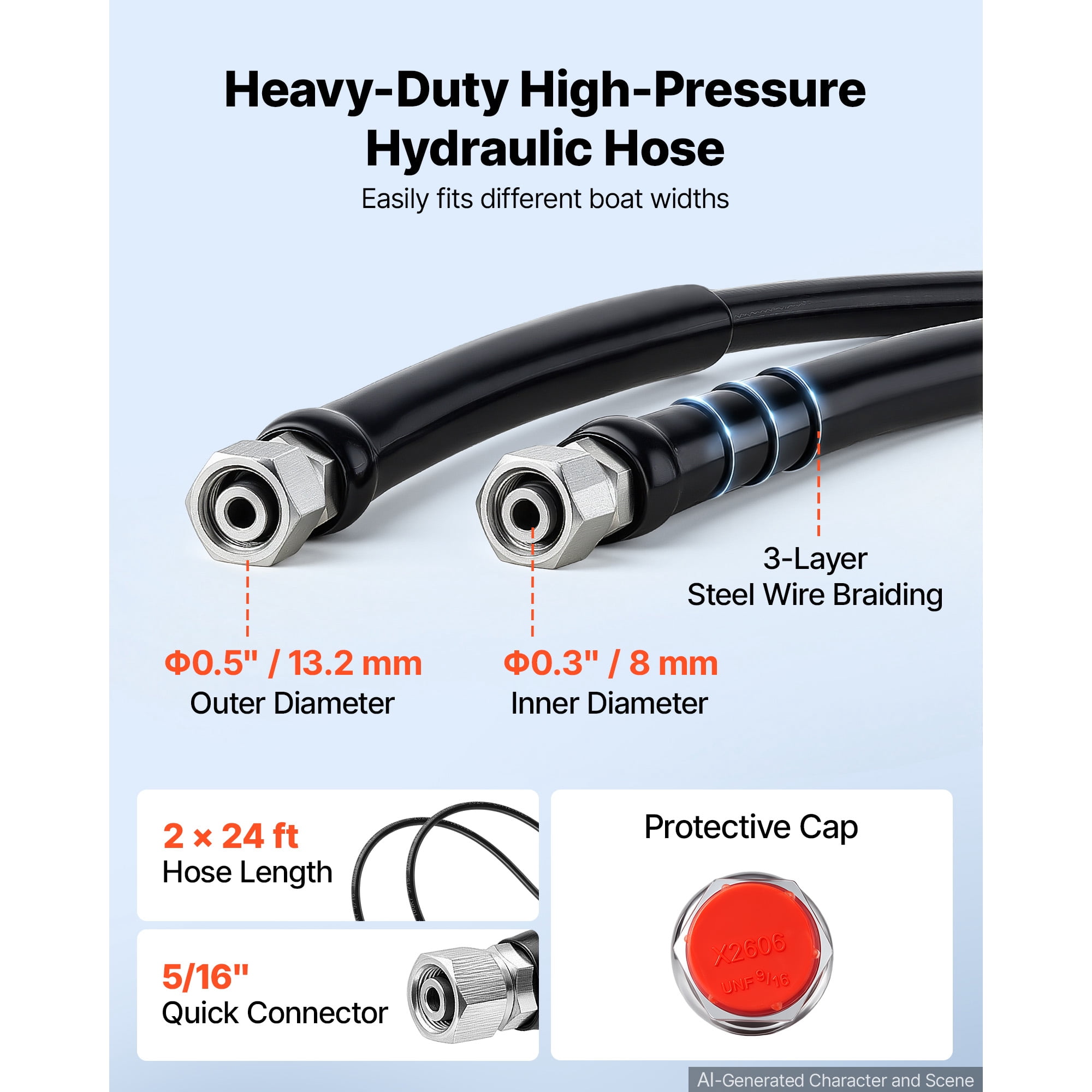

• 2 x 24FT Durable High-Pressure Hoses: This hydraulic steering system for boats comes with two 24 ft hoses built for robust performance, minimizing the chances of leaks or bursts. Equipped with 5/16" quick-connect fittings, they ensure versatile and straightforward installation across different boat types.

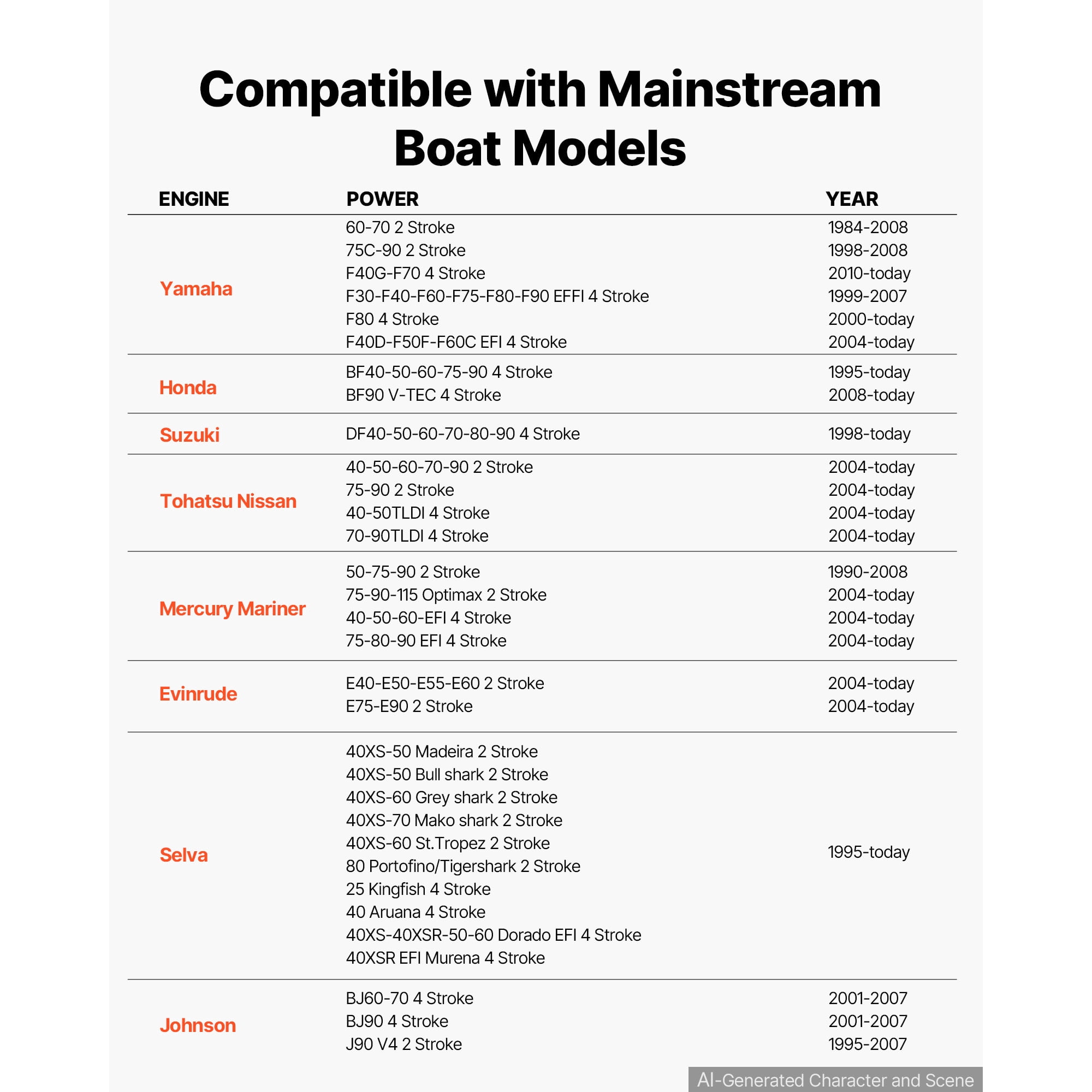

• Versatile Marine Steering Solution: This hydraulic steering pump kit ensures accurate and effortless control for a variety of outboard motors, making it suitable for popular brands such as Yamaha, Suzuki, Honda, Mercury, Nissan, and Tohatsu, offering improved handling on the water.
