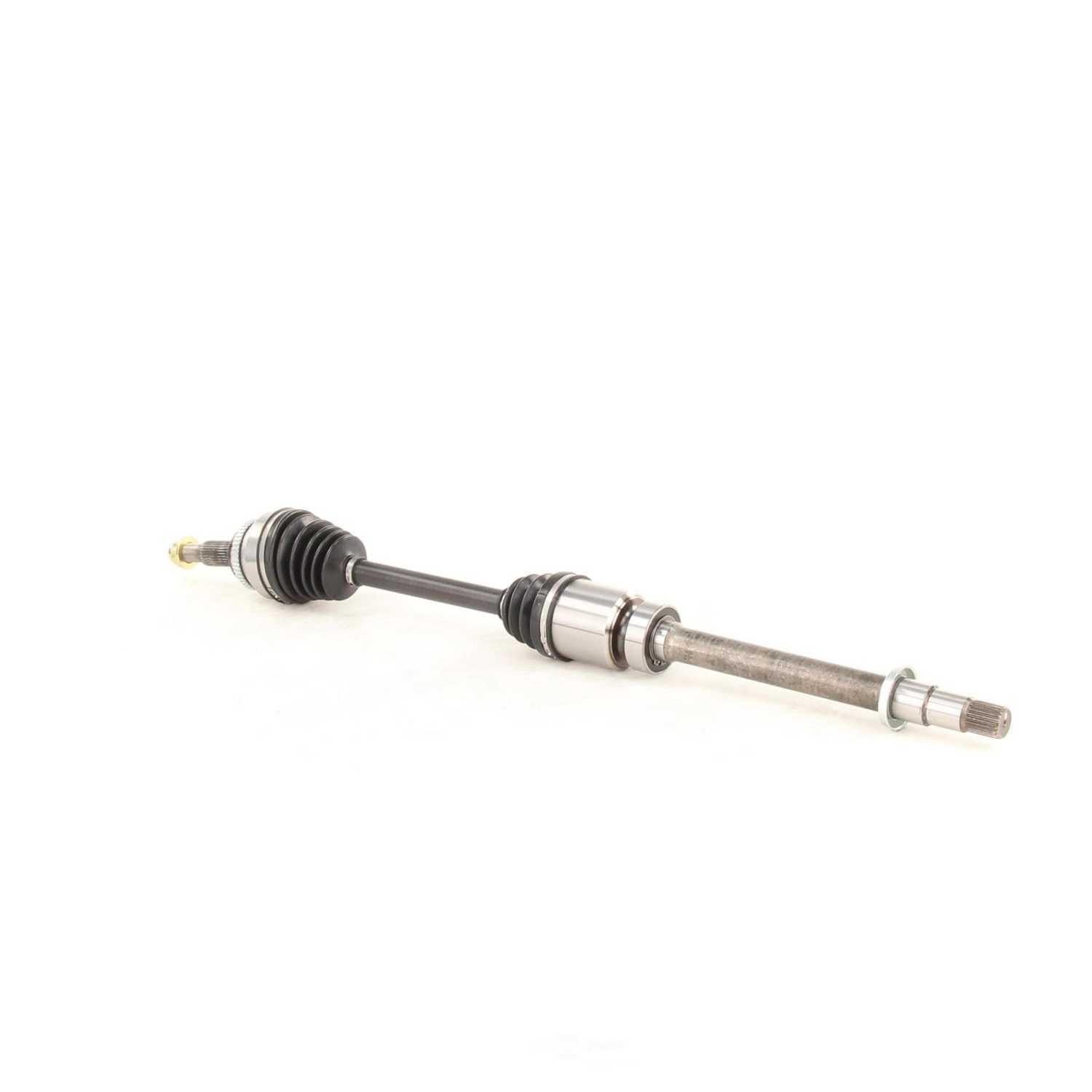

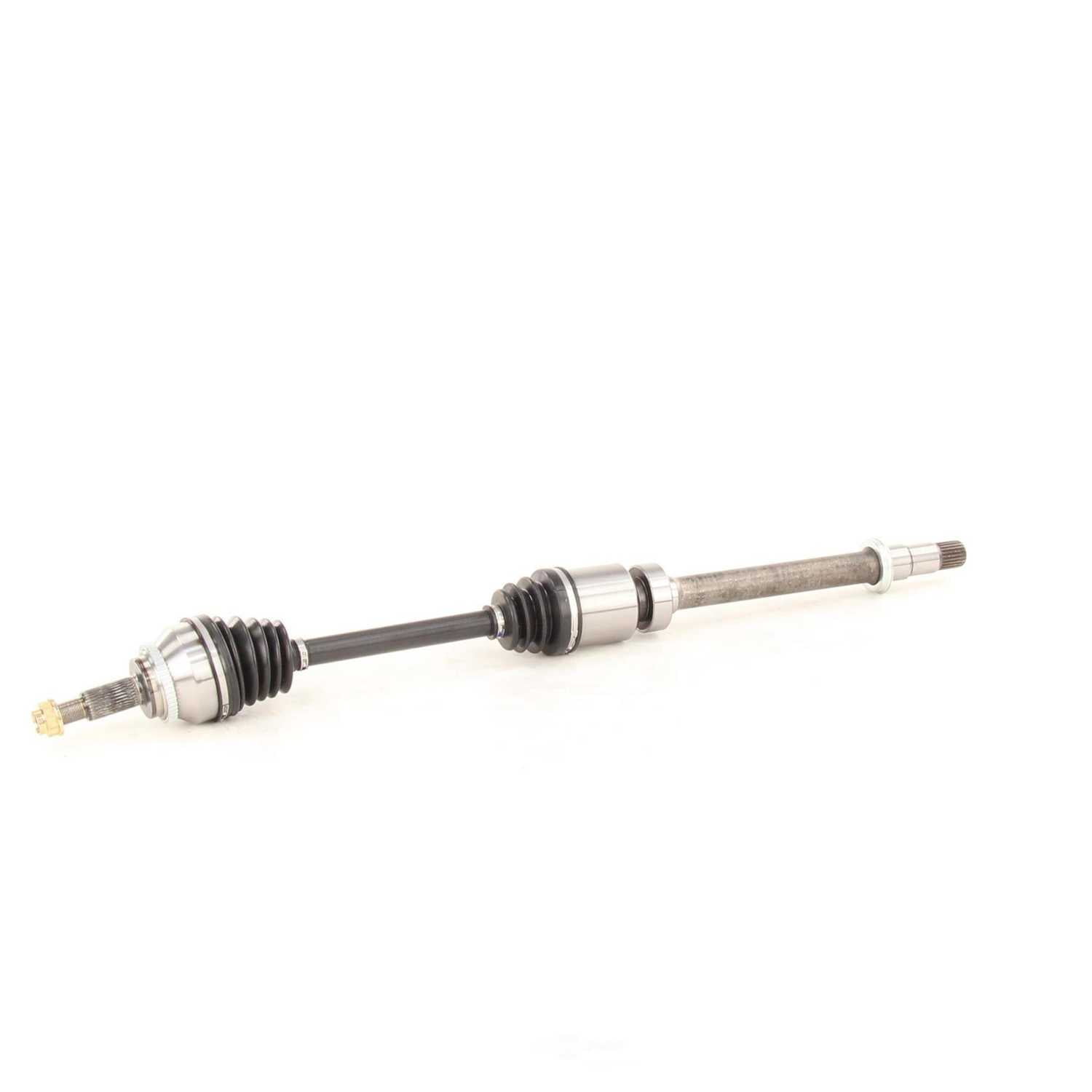

FVP TO-8409 AAR CV Axle Shaft

FVP TO-8409 CV Axle Shaft. AAR CV Axle Shaft. ABS Ring Type: Toothed. Axle Nut Head Type: Hex. Inboard Joint Type: Male. Outboard Joint Type: Conventional. ABS Ring Tooth Count: 48. Axle Nut Height (in): .85. Axle Nut Height (mm): 22. Axle Nut Length (in): 1.36. Axle Nut Length (mm): 35. Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company.

• AAR CV Axle Shaft
• ABS Ring Type: Toothed
• Axle Nut Head Type: Hex
• Inboard Joint Type: Male
• Outboard Joint Type: Conventional
• ABS Ring Tooth Count: 48
• Axle Nut Height (in): .85
• Axle Nut Height (mm): 22
• Axle Nut Length (in): 1.36
• Axle Nut Length (mm): 35
• Axle Nut Thread Size: M22x1.5
• Axle Nut Locking Type: Stake
• Axle Nut Hex Size (in): 1.18
• Axle Nut Hex Size (mm): 30
• Number Of Inboard Splines: 24
• Number Of Outboard Splines: 30
• Inboard Joint Boot Material: Neoprene
• Outboard Joint Boot Material: Neoprene
• Inboard Shaft Connection Style: Spline
• Overall Compressed Length (in): 39.69
• Overall Compressed Length (mm): 1008
• Outboard Shaft Connection Style: Spline
• Brand: FVP
• Manufacturer Part Number: TO-8409
• Part Type: CV Axle Shaft
