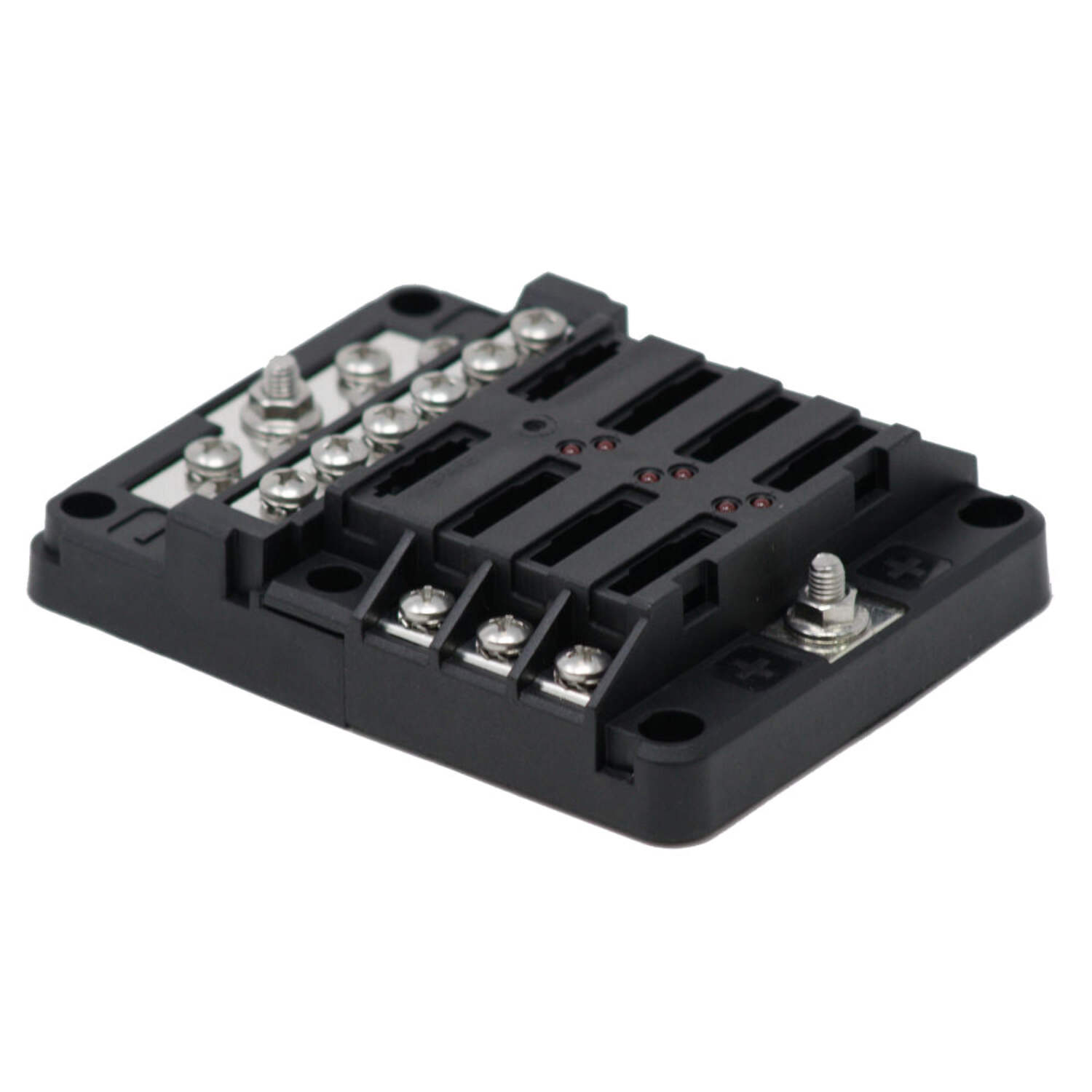

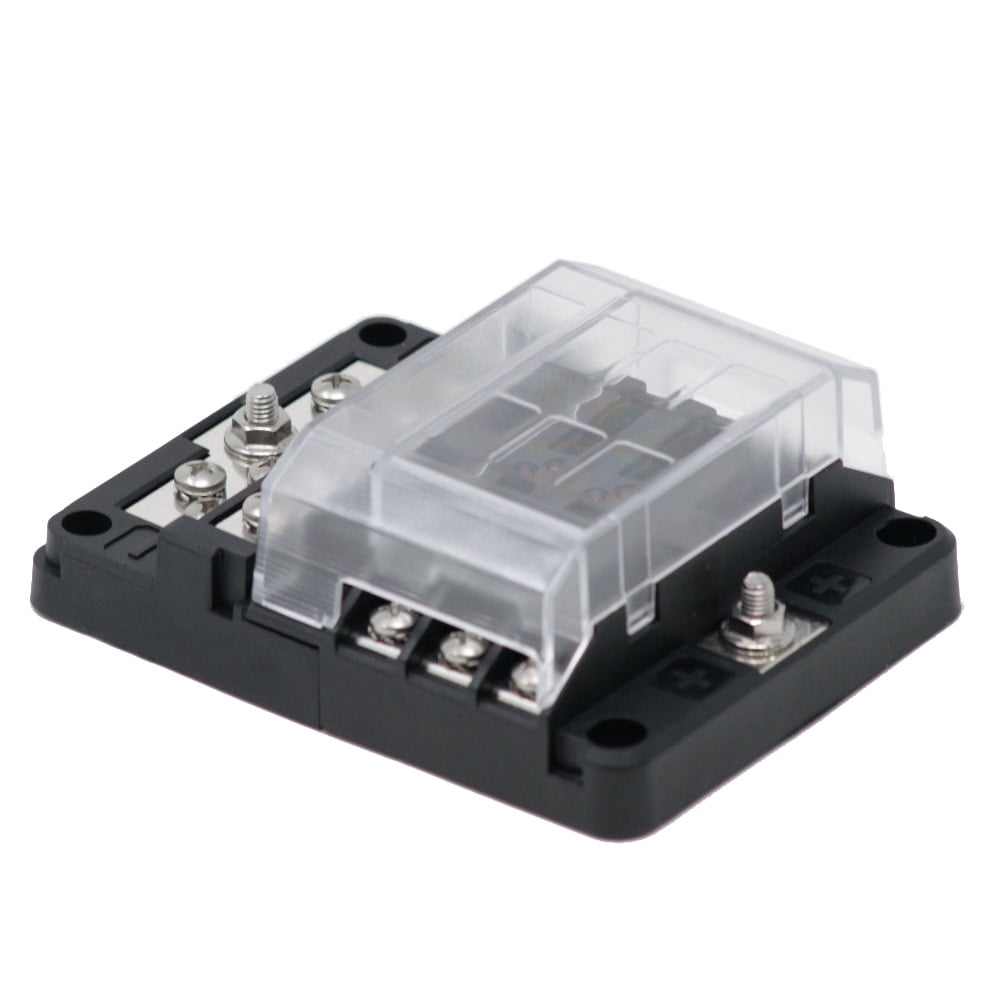

Egis RT Fuse Block 6 Position w/Ground LED Indication [8025]

<p></p><p><strong>RT Fuse Block 6 Position with Ground &amp; LED Indication</strong></p><p>This 6-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 &amp; 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.</p><p><strong>Applications:</strong></p><ul><li>Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.</li><li>Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.</li></ul><p><strong>Features:</strong></p><ul><li>Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle</li><li>Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps</li><li>Supports SAE circuit protection standards for thermal/short circuit events</li></ul><p><strong>Specifications:</strong></p><ul><li>Maximum Current (Entire Block) Amps: 100</li><li>Maximum Current (Per Circuit) Amps: 30</li><li>Max Output Wire Size: #10 AWG</li><li>Voltage Range VDC: 0-36</li><li>Number of Fuse Positions: 6</li><li>Compatible Fuse Types: ATO / ATC / ATF</li></ul><p><strong>Focal Features:</strong></p><p><strong>Spare Fuse Locations</strong></p><p>Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.</p><p><strong>Stainless Steel Self-Locking Hardware</strong></p><p>100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.</p><p><strong>LED Fuse Diagnostics</strong></p><p>Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.</p><p><strong>Cover/ Label Recesses</strong></p><p>Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.</p><p><strong>Ground Block Included</strong></p><p>Includes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.</p><p><strong>Ground Block Separates</strong></p><p>The ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.</p><p><strong>WARNING:</strong> This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to <a href="http://P65Warnings.ca.gov" rel="nofollow">P65Warnings.ca.gov</a>.</p> <p><b>Specifications:</b></p><ul><li>Amperage: 100a</li><li>Fuse Type: ATO/ATC/ATF</li><li>Type: Fuse Blocks</li><li>Box Dimensions: 3"H x 4"W x 8"L WT: 0.6 lbs</li><li>UPC: 850035199718</li></ul><br><a href="https://productimageserver.com/literature/quickGuide/103460QG.pdf" rel="nofollow">Quick Guide (pdf)</a>

• RT FUSE BLOCK 6 POS W/GROUND & LED
• MARINE FUSE BLOCK
• 8025
• New Part
