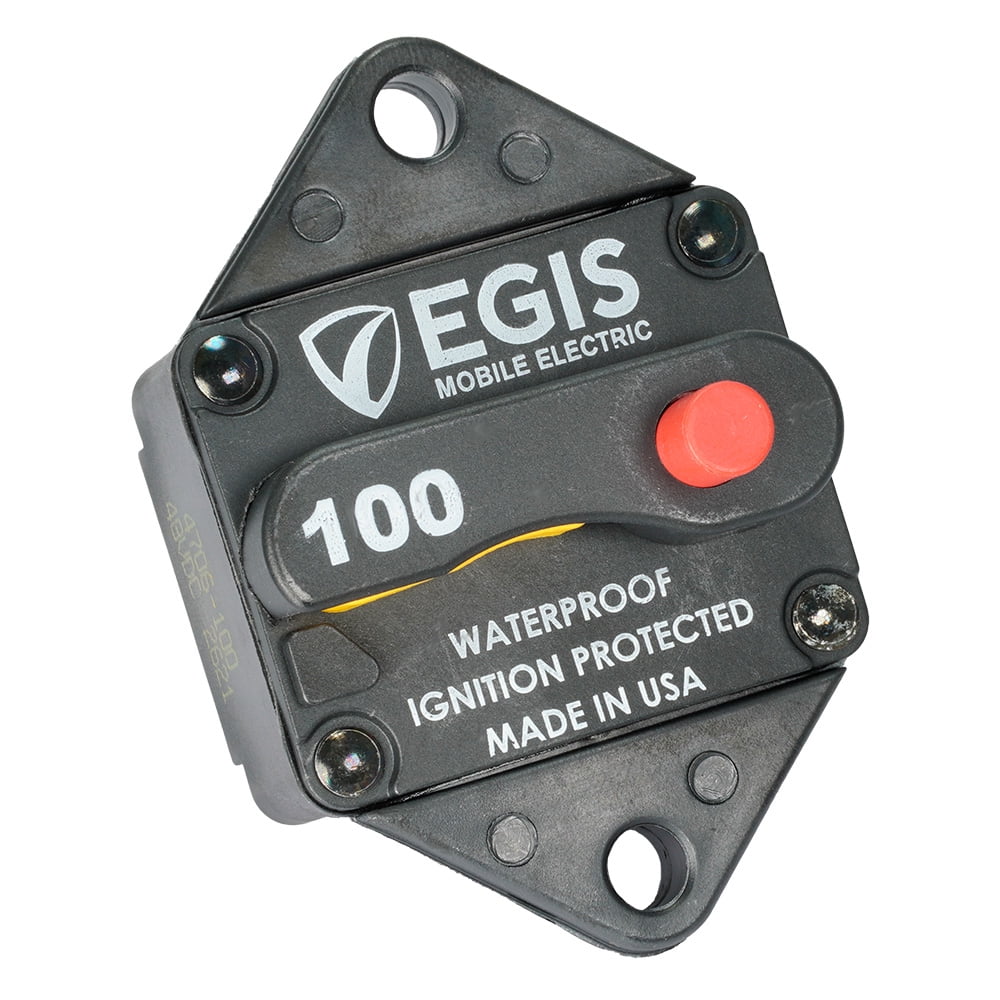

Egis 100A Panel Mount Circuit Breaker - 285 Series [4706-100]

<p></p><p><strong>100A Panel Mount Circuit Breaker - 285 Series</strong></p><p>This 100A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.</p><p><strong>Applications:</strong></p><ul><li>Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution</li><li>Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location</li></ul><p><strong>Features:</strong></p><ul><li>Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation&nbsp;</li><li>High Voltage (48 Vdc) Rating - easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.</li><li>High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current</li><li>High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power</li><li>4-Year Warranty - Egis stands behind its product's ability to meet the user's needs</li></ul><p><strong>Specifications:</strong></p><ul><li>Continuous Current Amps: 100</li><li>Max Voltage: 48</li><li>Cycling Endurance: 6,000</li><li>Interrupt Current @16 VDC (Amps): 5,000</li><li>Interrupt Current @28 VDC (Amps): 3,000</li><li>Ingress Protection Rating: IP67</li></ul><p><strong>Focal Features:</strong></p><p><strong>ON/OFF High Visibility Controls</strong></p><p>Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.</p><p><strong>Panel Mount Flange</strong></p><p>Provides rear/front panel installation options.</p><p><strong>Stainless Steel Hardware / KEPS Locking Nuts</strong></p><p>Corrosion and vibration resistance for harsh environment applications.</p><p><strong>Proudly Made Domestically</strong></p><p>Made Domestically of high-quality components.</p><p><strong>WARNING:</strong> This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to <a href="http://P65Warnings.ca.gov" rel="nofollow">P65Warnings.ca.gov</a>.</p> <p><b>Specifications:</b></p><ul><li>Amperage: 100a</li><li>Box Dimensions: 3"H x 3"W x 4"L WT: 0.2 lbs</li><li>UPC: 850035199077</li></ul><br><a href="https://productimageserver.com/literature/quickGuide/103483QG.pdf" rel="nofollow">Quick Guide (pdf)</a>

• BREAKER-285 PANL MT 100A
• MARINE CIRCUIT BREAKER
• Authentic Part
• 4706-100
• TBD
