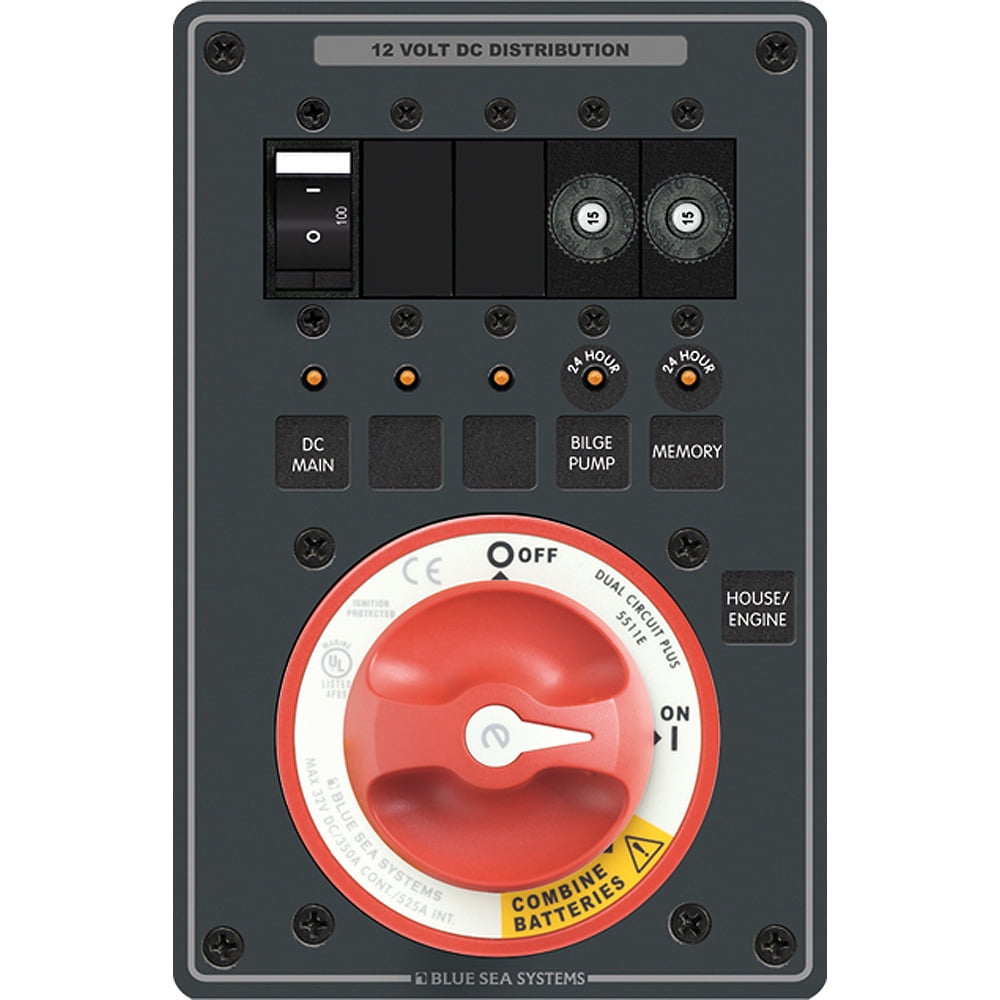

Blue Sea Systems Boat/RV 8690 Engine Battery Management Main Distribution Panel

New battery management panel integrates the dual circuit plus battery switch to simplify switching and avoid the risk of a depleted start battery. Includes 100A main circuit breaker and two 15A push button circuit breakers for 24 hour circuits like bilge pumps.<br><br>Amps: Continuous: 300A<br>Intermittent: 525<br>Cranking: 700<br>Volts: 24<br>Size: 5-1/4" W x 8" H<br>

• e-Series Dual Circuit Plus PN 5511e(1) 100A C-Series Flat Rocker Circuit Breaker(2) 15A Push Button Thermal Circuit Breakers
• Designed for twin engine configurations
• Provides 24 hour circuit protection
• Provides main DC circuit protection in addition to high ampere load protection
• Protects electronics from sags and spikes caused by engine cranking
• Allows emergency cross connect between isolated battery banks
• Isolates the Engine circuit from the House circuit
• Simplifies battery switch operation
• Allows independent battery discharge
• Addition of an Automatic Charging Relay automates charging both batteries
• Includes 4218 - Square Format Labels and 4140 - 24 Hour Round Labels WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
• Box Dimensions: 6"H x 9"W x 11"L WT: 4 lbs
• UPC: 632085086909Quick Guide (pdf)Owner's Manual (pdf)
