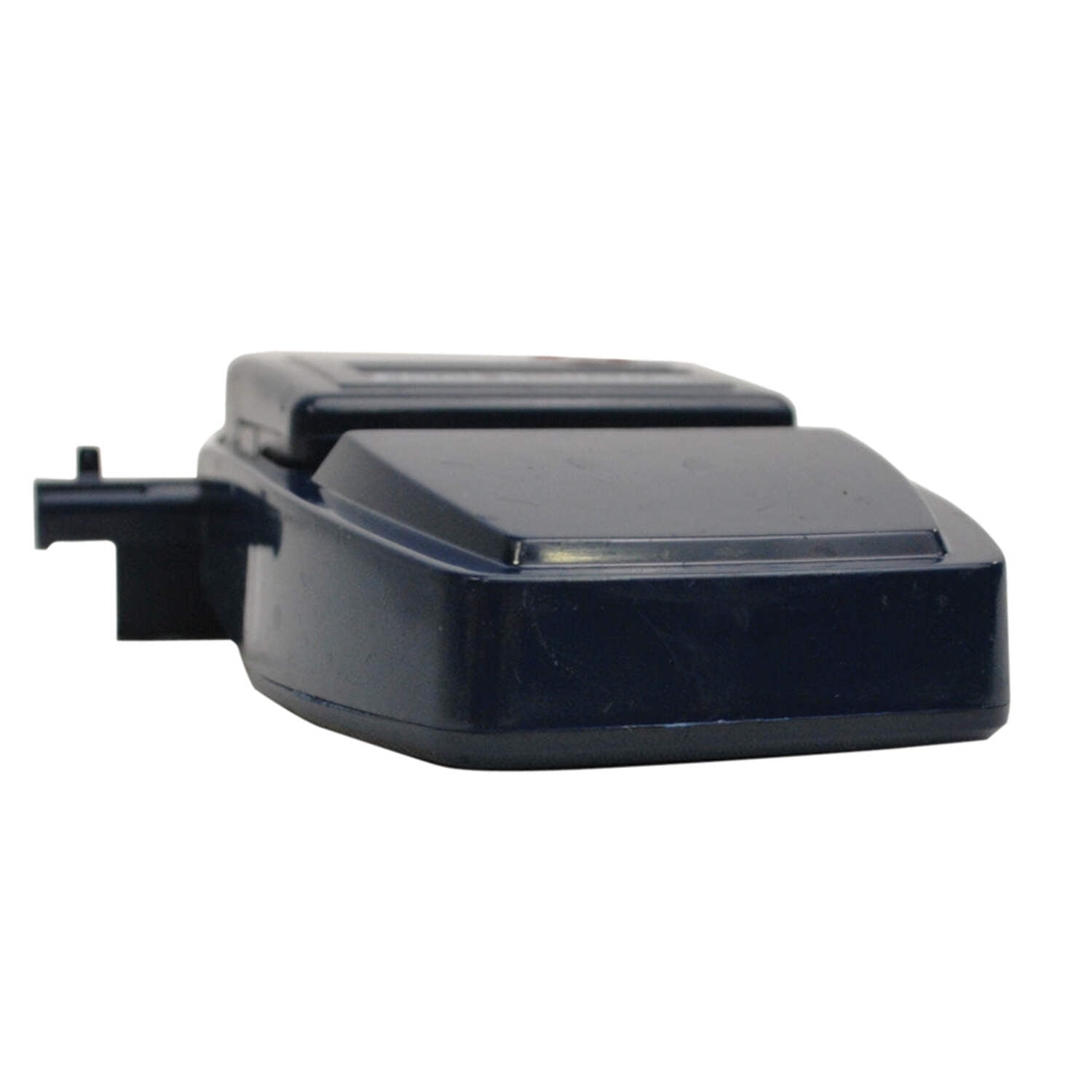

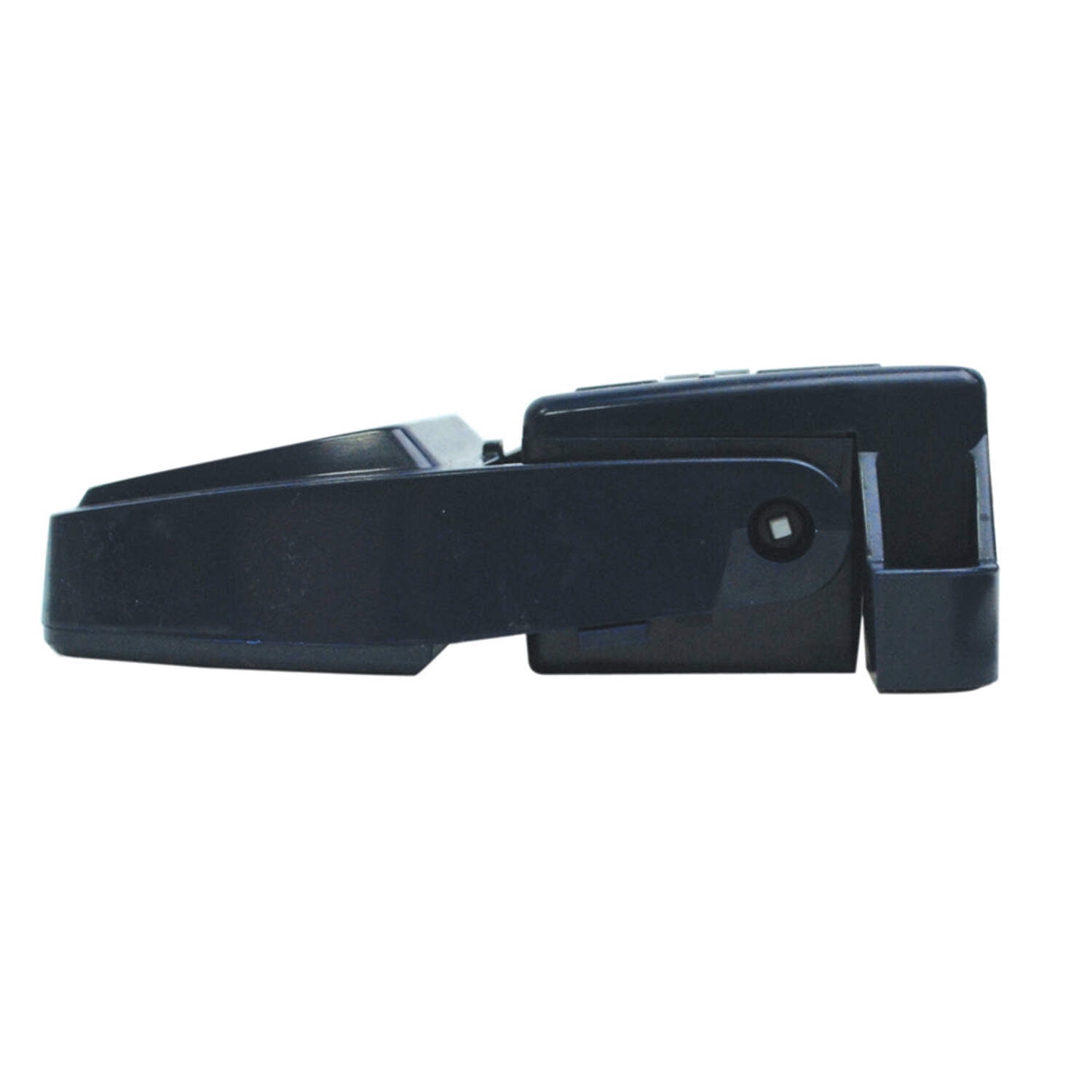

Attwood Automatic Float Switch - 12V and 24V

Attwood Automatic Float Switch - 12V and 24V Float Switch. Part Num: 4202-7. Converts bilge pumps to fully automatic operation. Maximum amp draw is 12 amps (at 12-volt D. C). or 6-amps (at 24-Volts D. C).. Features a compact, low profile design that mounts on any surface from a horizontal up to a 24x angle. Incorporates a reliable and affordable mechanical switch that actuates pump motor at 2" water level. Wire leads do not flex or hinge with the float as on some competitive models. Integral cover dampens bilge sloshing to reduce pump cycling, and prevents debris interference. Sealed switch mechanism resists moisture, fume-ignition, and electrical shock. Contains no mercury, which is listed as a health hazard and Persistent Toxic Substance in over 26 states.<b></b><ul><b></b><ul><li>Sealed switch mechanism resists moisture, fume-ignition, and electrical shock</li><li>Contains no mercury, which is listed as a health hazard and Persistent Toxic Substance in over 26 states</li><li>Volts: 12V and 24V</li><li>Box Dimensions: 3"H x 6"W x 9"L</li><li>Weight: 0.4lbs</li><li></li><li><b>Brand: </b>Attwood Marine</li><li><b>Model Number: </b>1135-43914</li></ul><b>Shipping Details:</b></ul>

• Float Switch
• Part #: 4202-7
• Converts bilge pumps to fully automatic operation. Maximum amp draw is 12 amps (at 12-volt D.C.) or 6-amps (at 24-Volts D.C.). Features a compact, low profile design that mounts on any surface from a horizontal up to a 24x angle. Incorporates a reliable and affordable mechanical switch that actuates pump motor at 2" water level. Wire leads do not flex or hinge with the float as on some competitive models. Integral cover dampens bilge sloshing to reduce pump cycling, and prevents debris interference. Sealed switch mechanism resists moisture, fume-ignition, and electrical shock. Contains no mercury, which is listed as a health hazard and "Persistent Toxic Substance" in over 26 states. Float switch installs directly onto the rear slots of the V-Series pump bracket. Features a convenient test knob to test pump operation. Features: > 36" Wire 12V & 24V CE Rated WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Manufacturer : Attwood Marine Manufacturer Part No : 4202-7 UPC : 022697420275
