AEM 30-5601F CD-5LF Flat Panel Digital Dash Display

★★★★★ 4.1 147 reviews

US$639.98
Price when purchased online
Free shipping Free 30-day returns

Sold and shipped by fdemartires.es
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$639.98
Price when purchased online
Free shipping Free 30-day returns

How do you want your item?
You get 30 days free! Choose a plan at checkout.
Shipping
Arrives Oct 4
Free
Pickup
Check nearby
Delivery
Not available

Sold and shipped by fdemartires.es
Free 30-day returns Details

Product details

Management number 251604778 Release Date 2026/09/26 List Price US$639.98 Model Number 251604778
Category

Carbon Flat Panel Logging Display, 5-inch diagonal screen;<br><br>AEM CD5 Carbon Flat Panel Digital Displays are perfect for flush mount installation or in-dash enclosures with tight tolerances. They include all of the robust features found in the original CD-5 Carbon car dashboard monitors, but do not have buttons or an LED shade hood built into the enclosure. AEM CD5 Carbon Flat Panel Digital Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the car dashboard monitor's enclosure and are fully programmable. Four AEM CD5 Carbon Flat Panel Digital Display packages are available: PN 30-5600F, CD-5F Carbon Flat Panel Non-Logging/ Non-GPS Display PN 30-5601F, CD-5FL Carbon Flat Panel Logging Display PN 30-5602F, CD-5FG Carbon Flat Panel Non-Logging Display PN 30-5603F, CD-5FLG Carbon Flat Panel Logging Display with Internal GPS;

  • Full color 5” screen with 800x480 resolution
  • Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
  • Layout files interchangeable between all CD Carbon Dashes

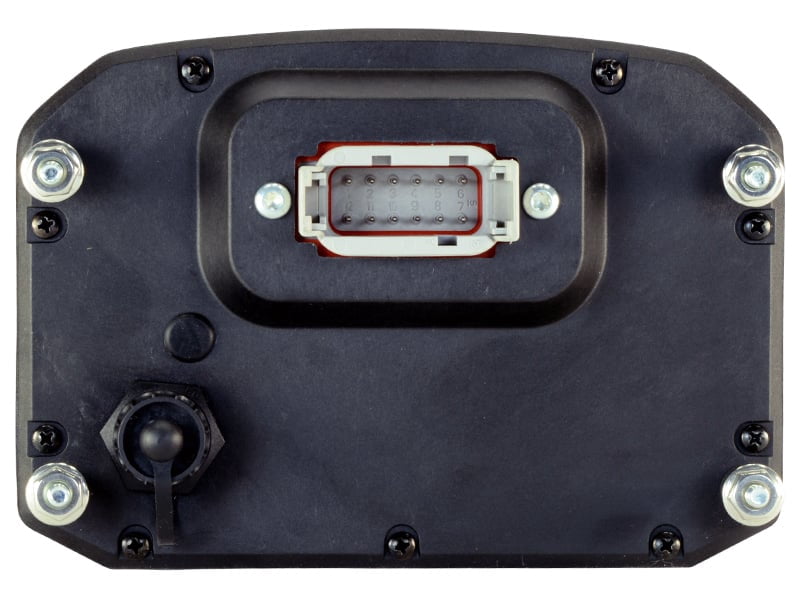

  • Wiring interface/harnesses are identical between all CD Carbon Dashes
  • Rugged, lightweight flow-molded carbon fiber composite enclosure
  • IP66 water resistance – open cockpit safe
  • Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
  • Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)

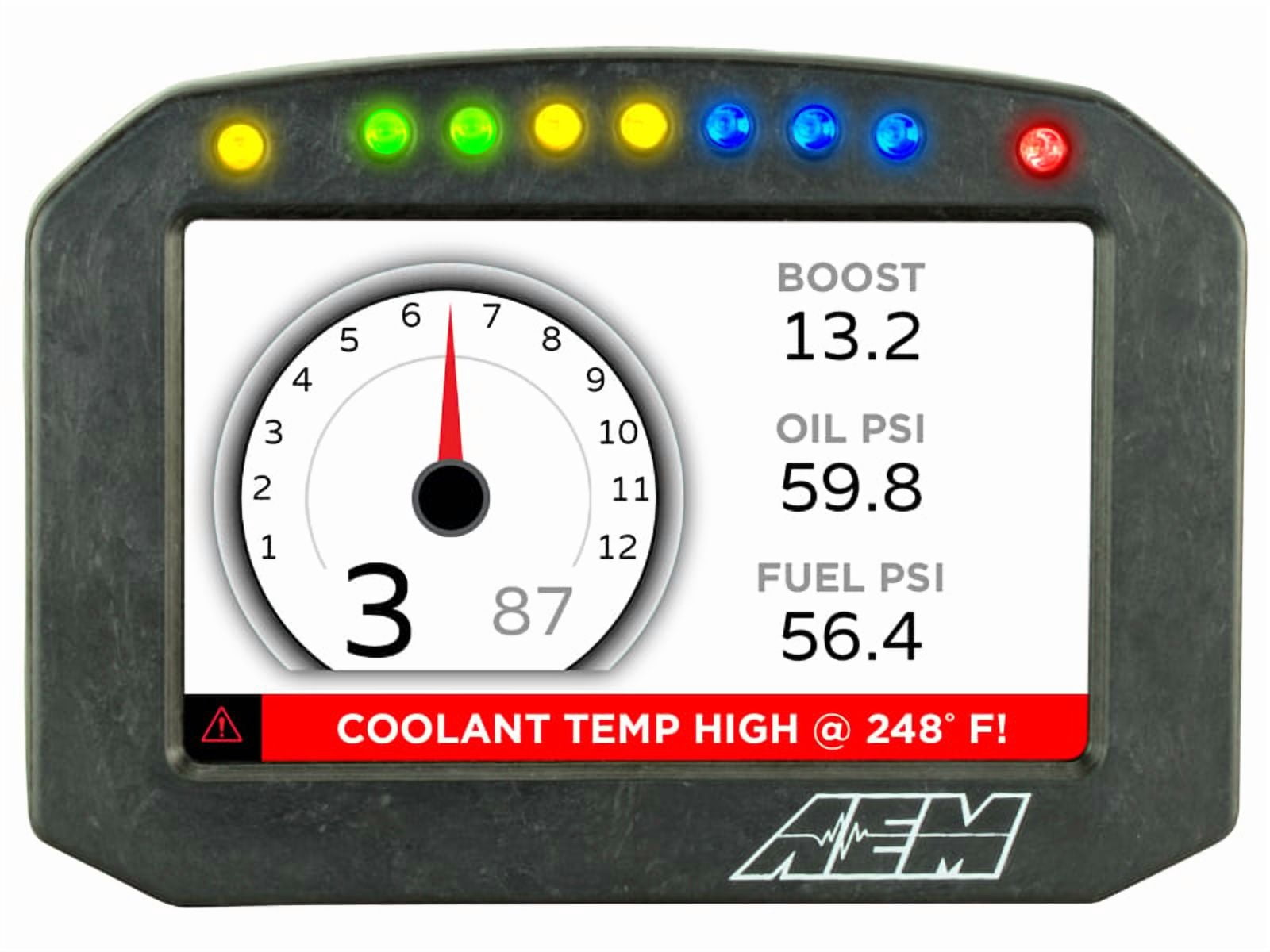

  • Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)

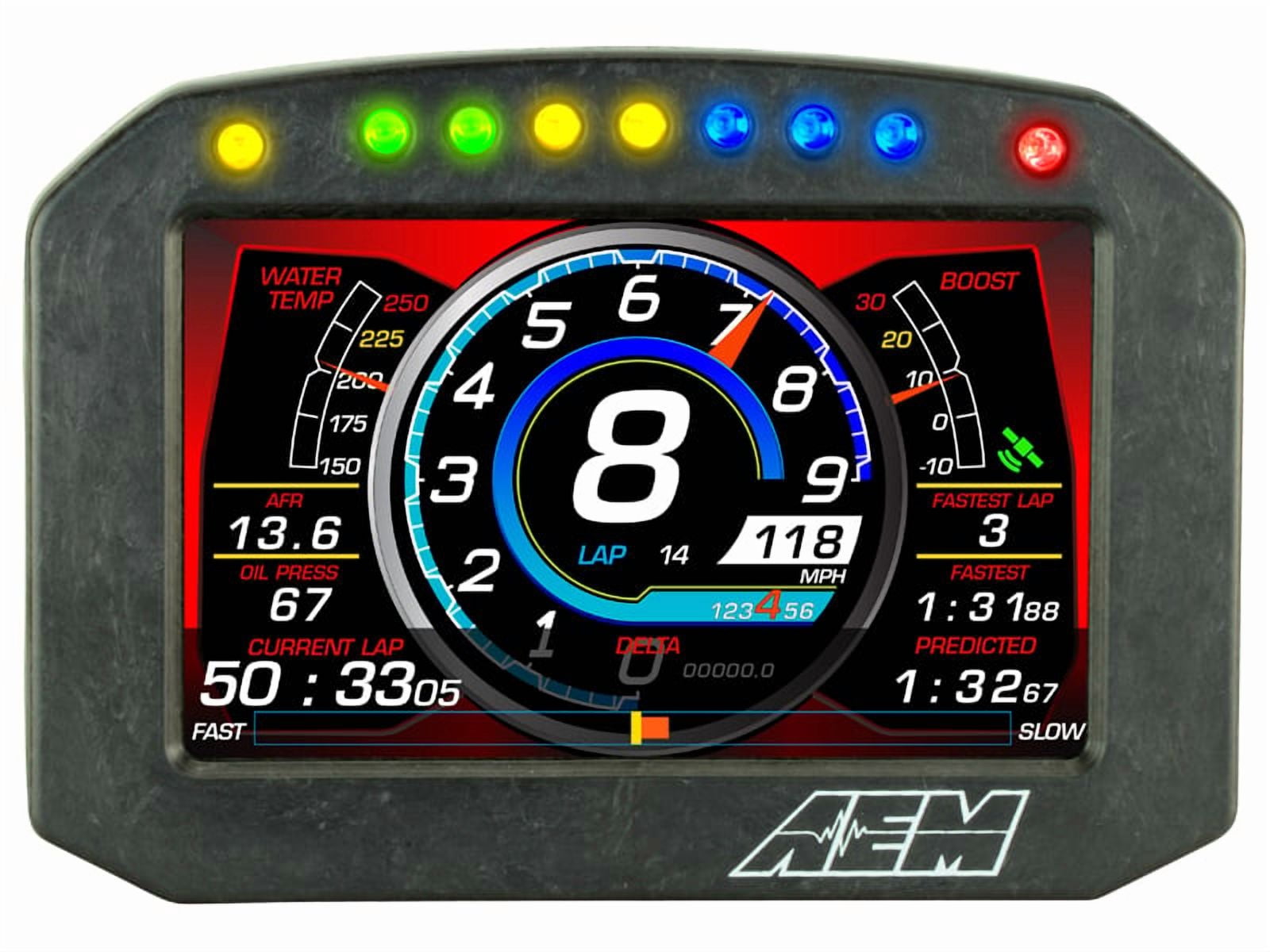

  • Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.

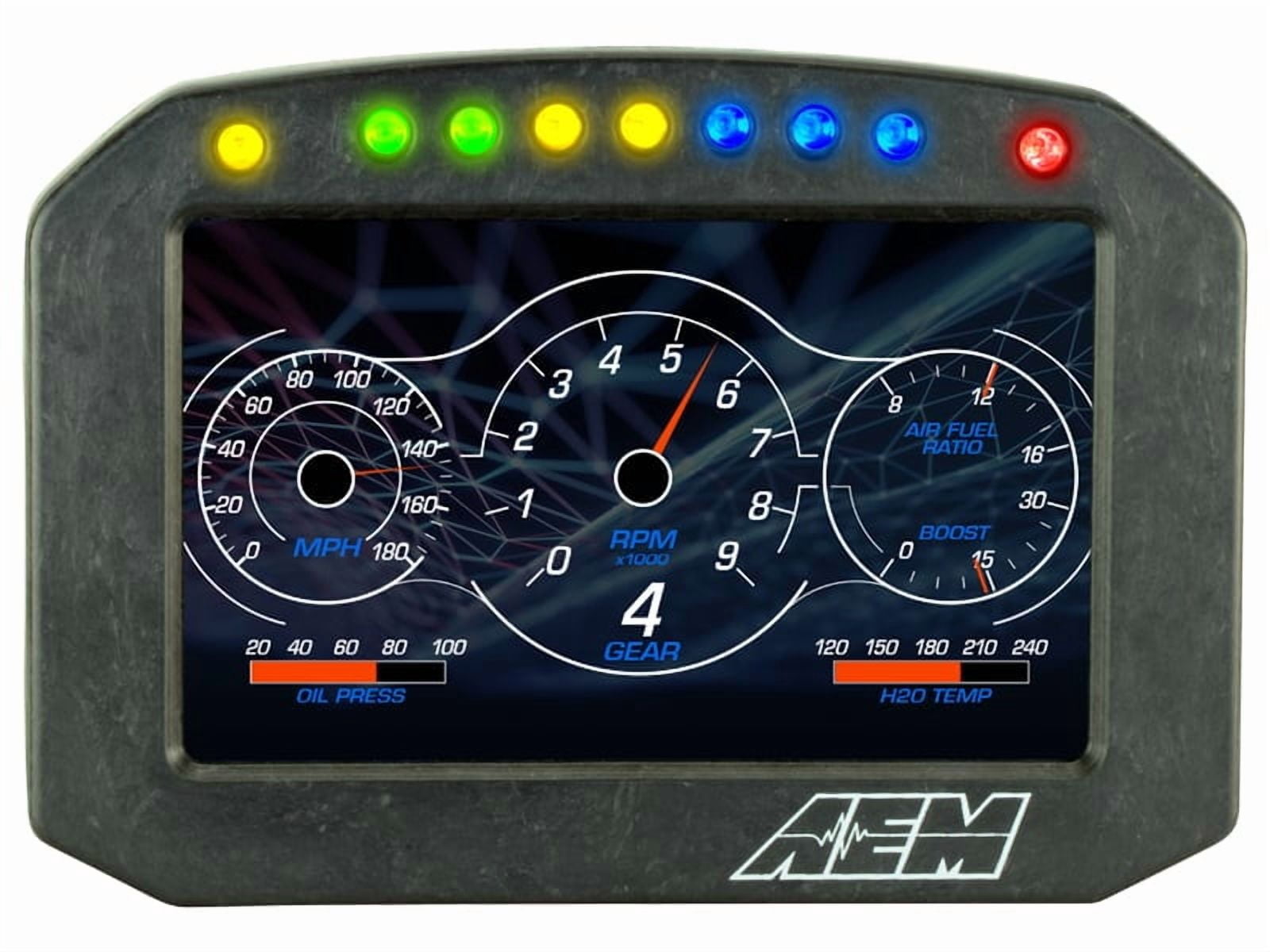

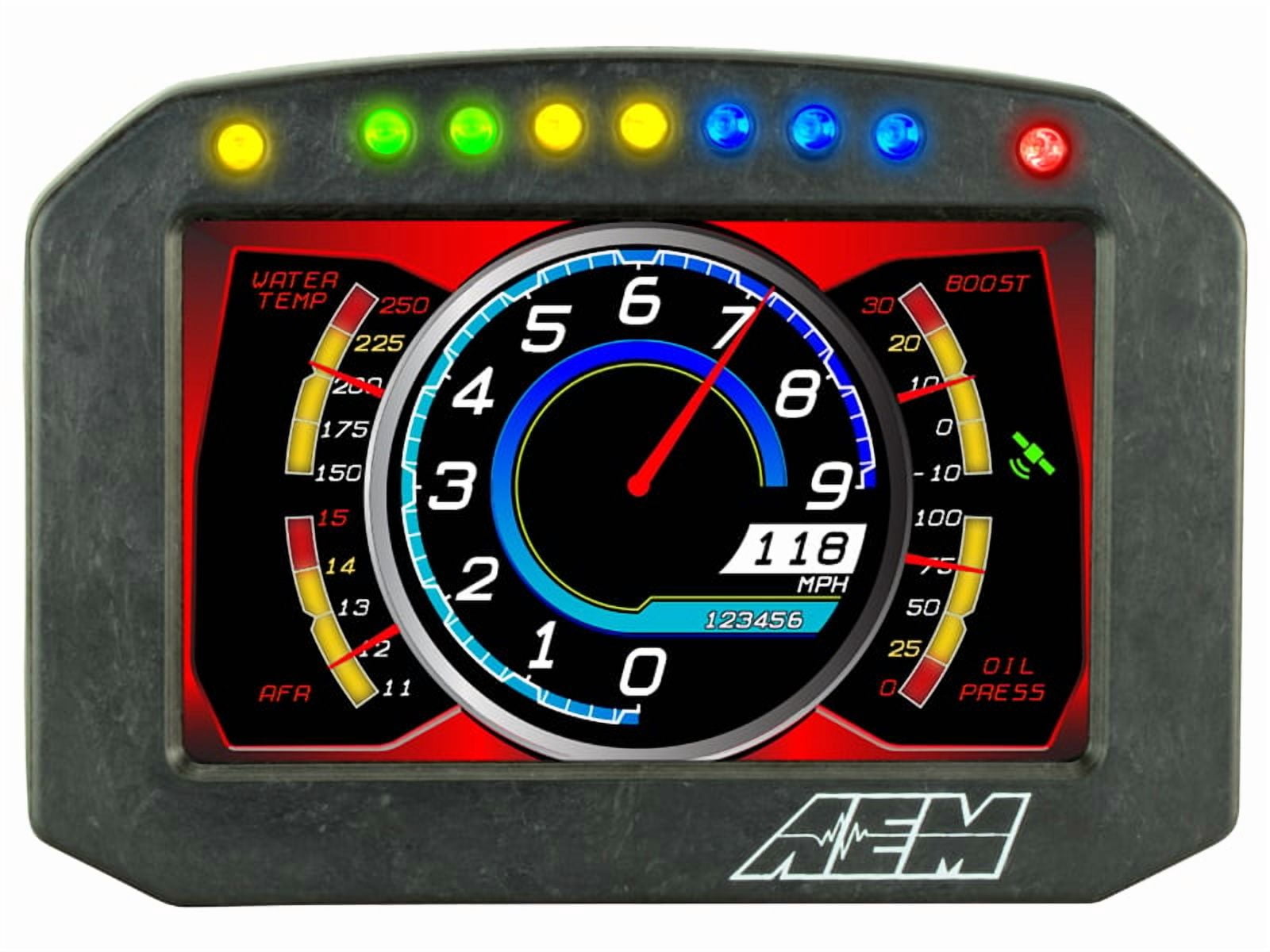

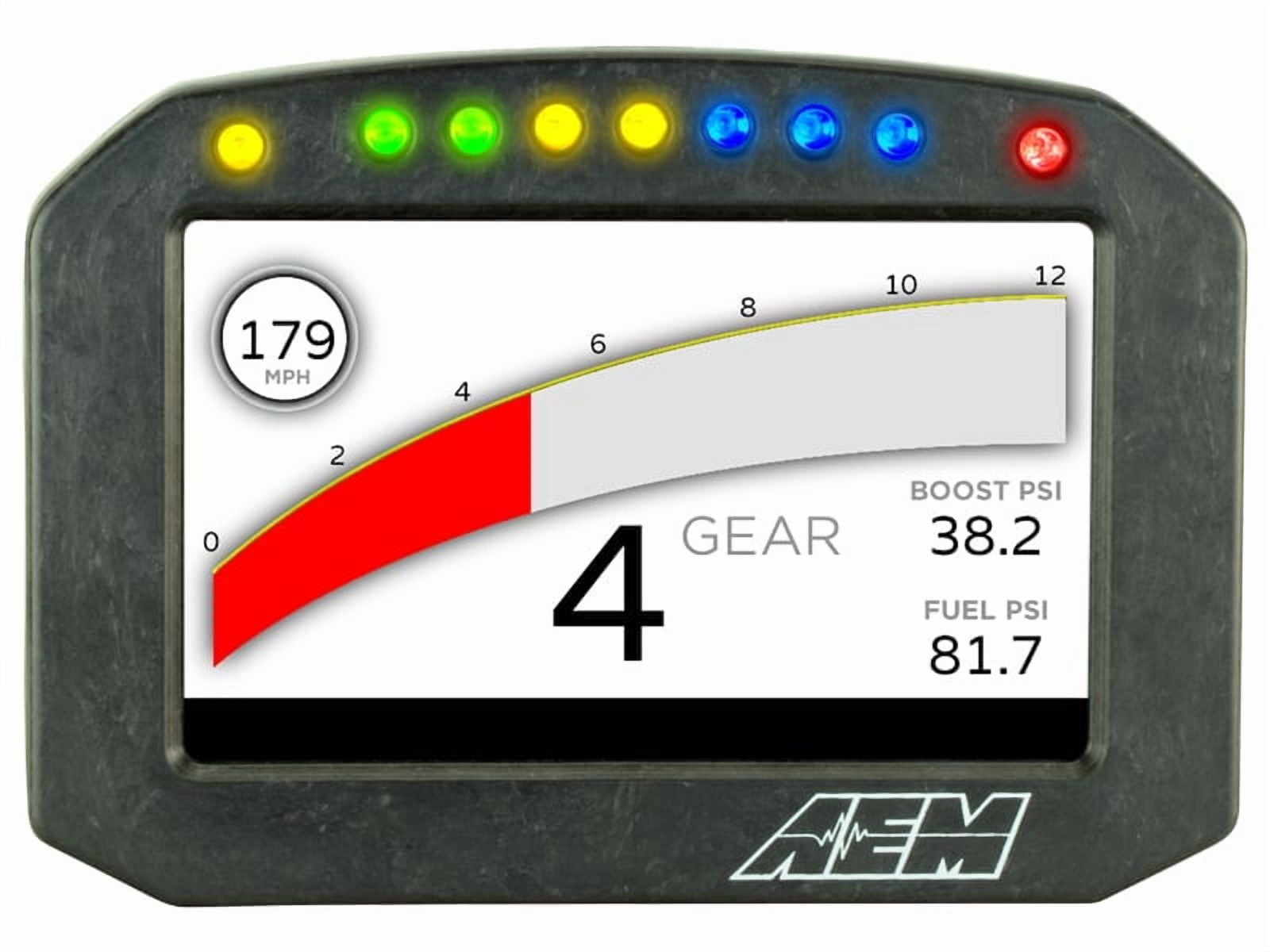

  • Use the included page layouts and input your channels and text, or create your own from scratch
  • Free DashDesign Graphics Editor software
  • Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
  • Odometer function and Two programmable LEDs
  • Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
  • ‘Headlight-in’ connection dims the dash and LEDs during night operation
  • Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
  • User supplied graphics can be changed based on channel values (up to the full screen size)
  • Convert CAN bus channel values to user-defined text
  • Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
Vehicle model A1Y-305601F
Vehicle fitment type Specific
Brand AEM
Touchscreen N
Screen size 5 in
Features Easy Installation
Resolution 800 x 480
Display Digital
Vehicle type Car
Vehicle stereo feature In-Dash
Size 5-inch diagonal screen
Native resolution 800 x 480
Automotive parts division Performance
Model 30-5601F

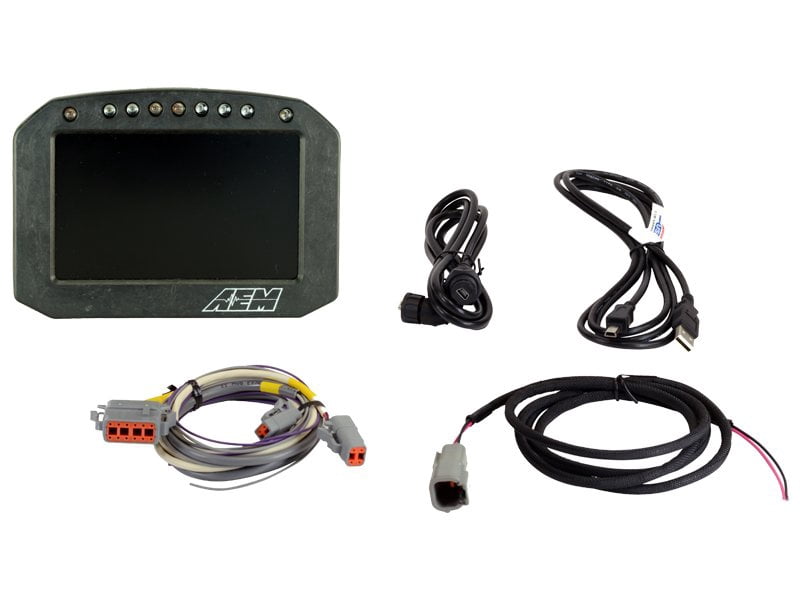

Items included Flat Panel Digital Dash
Color Multicolor
Has written warranty No
