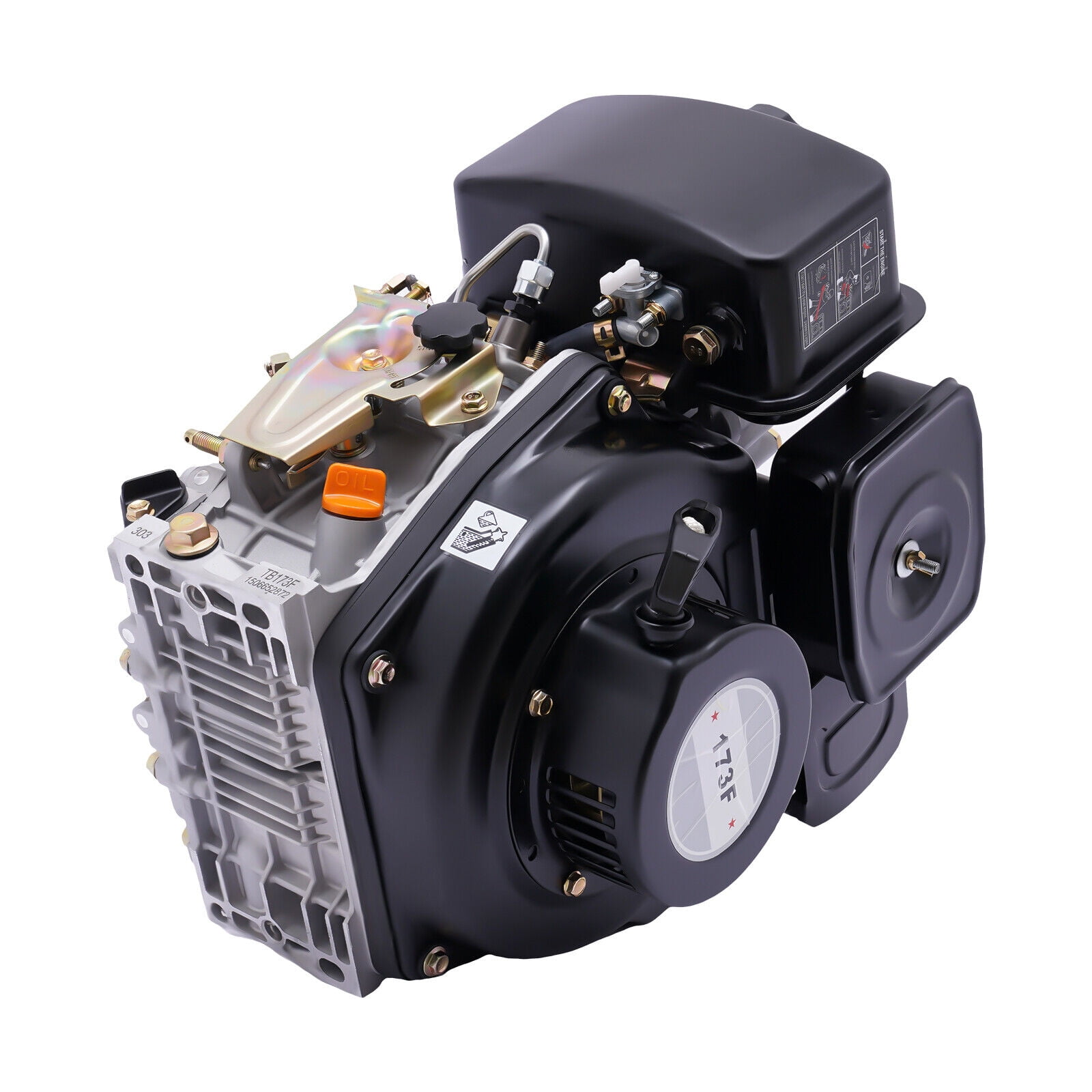

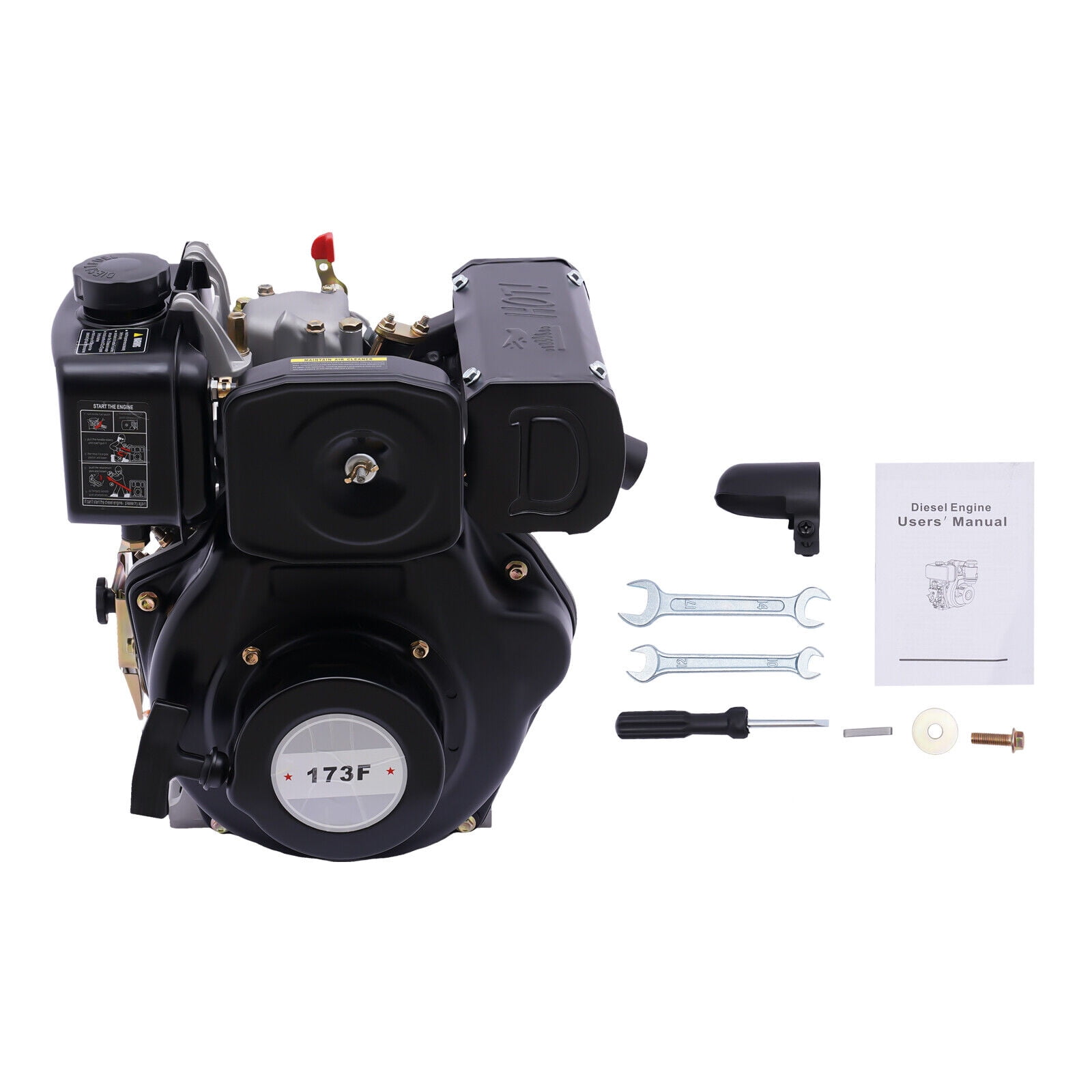

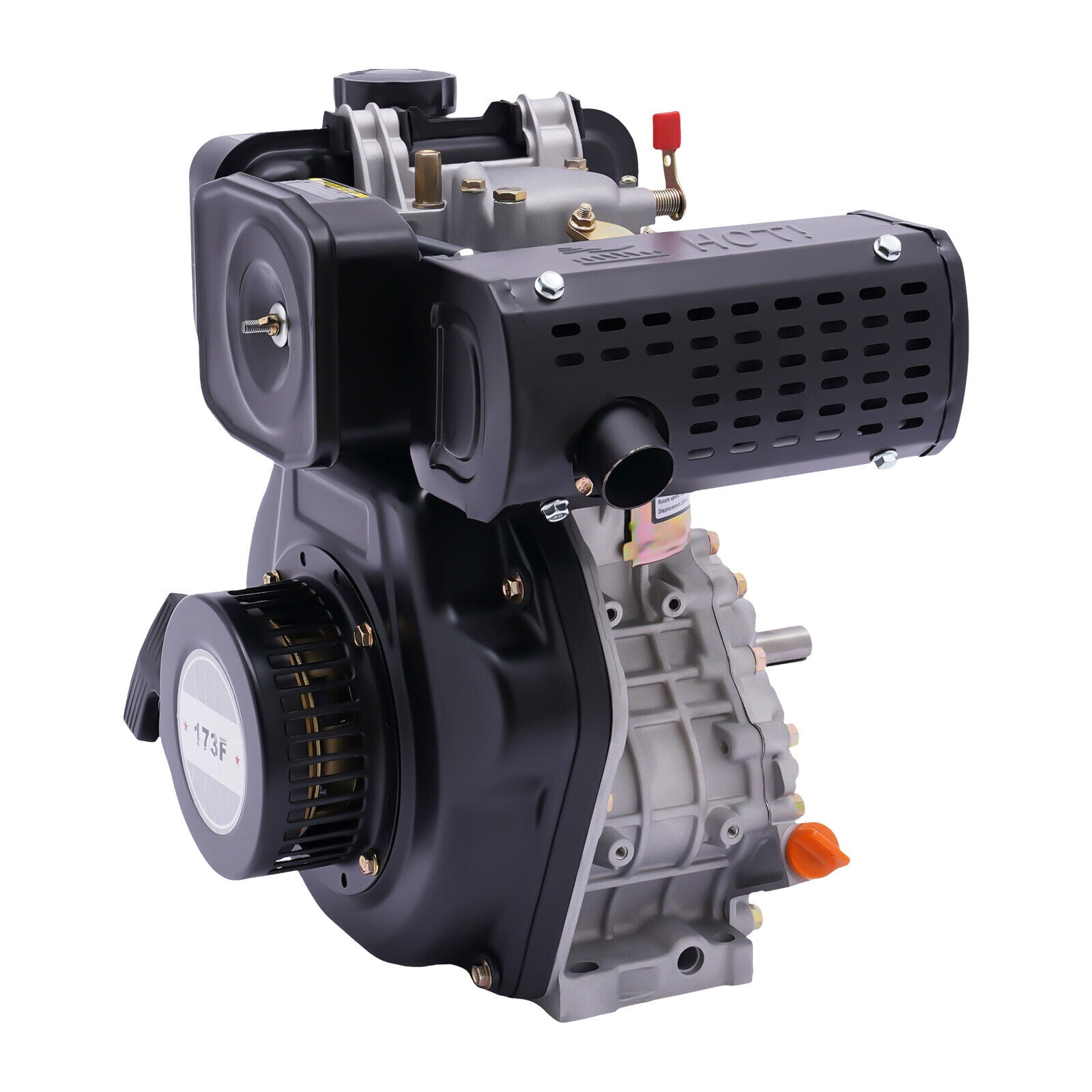

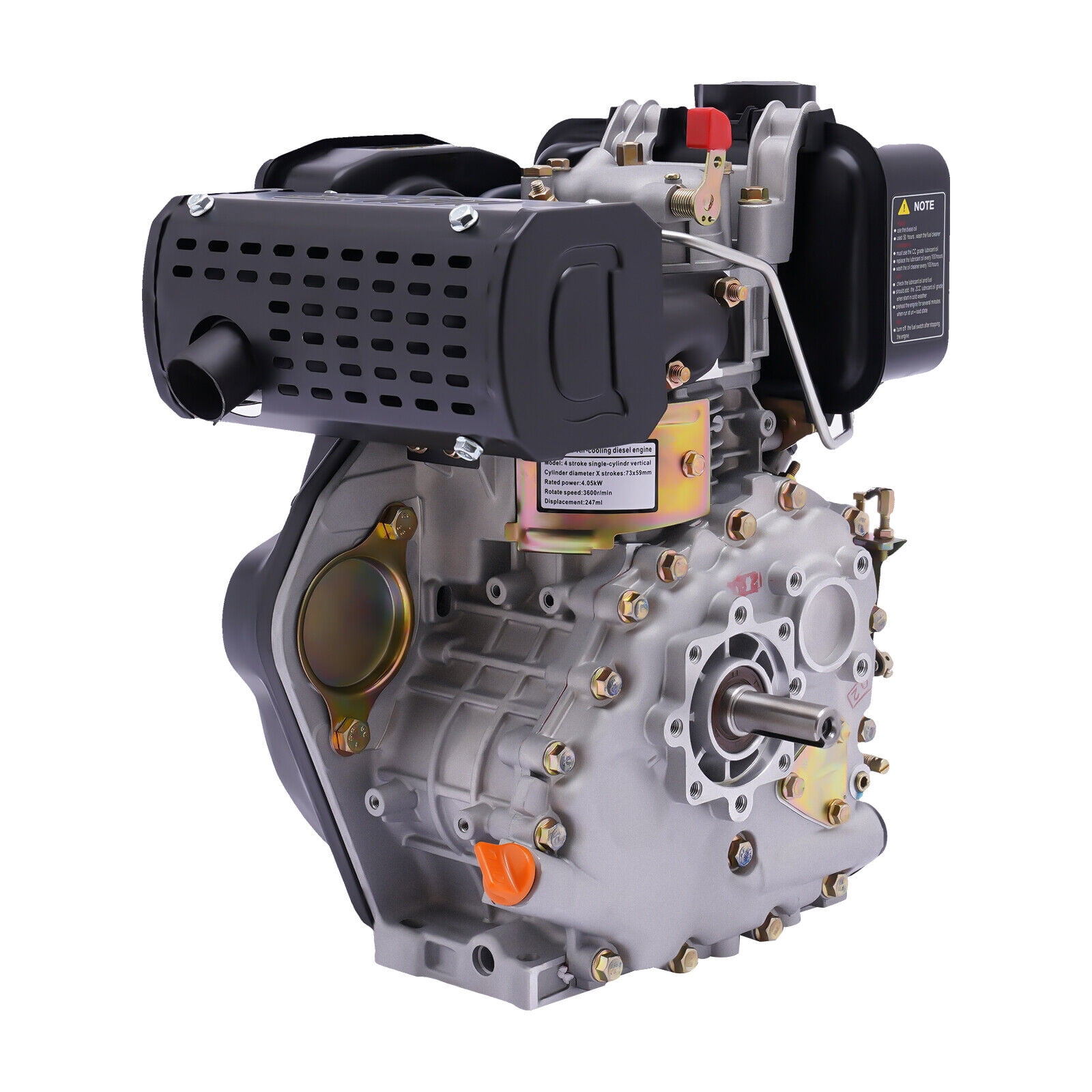

4 Stroke Air-Cooled Diesel Engine Air Cooling Vertical Engine Motor Hand Start Diesel Engine Single Cylinder for Agricultural Machinery
Product details
| Management number | 251384113 | Release Date | 2026/09/26 | List Price | US$124.80 | Model Number | 251384113 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

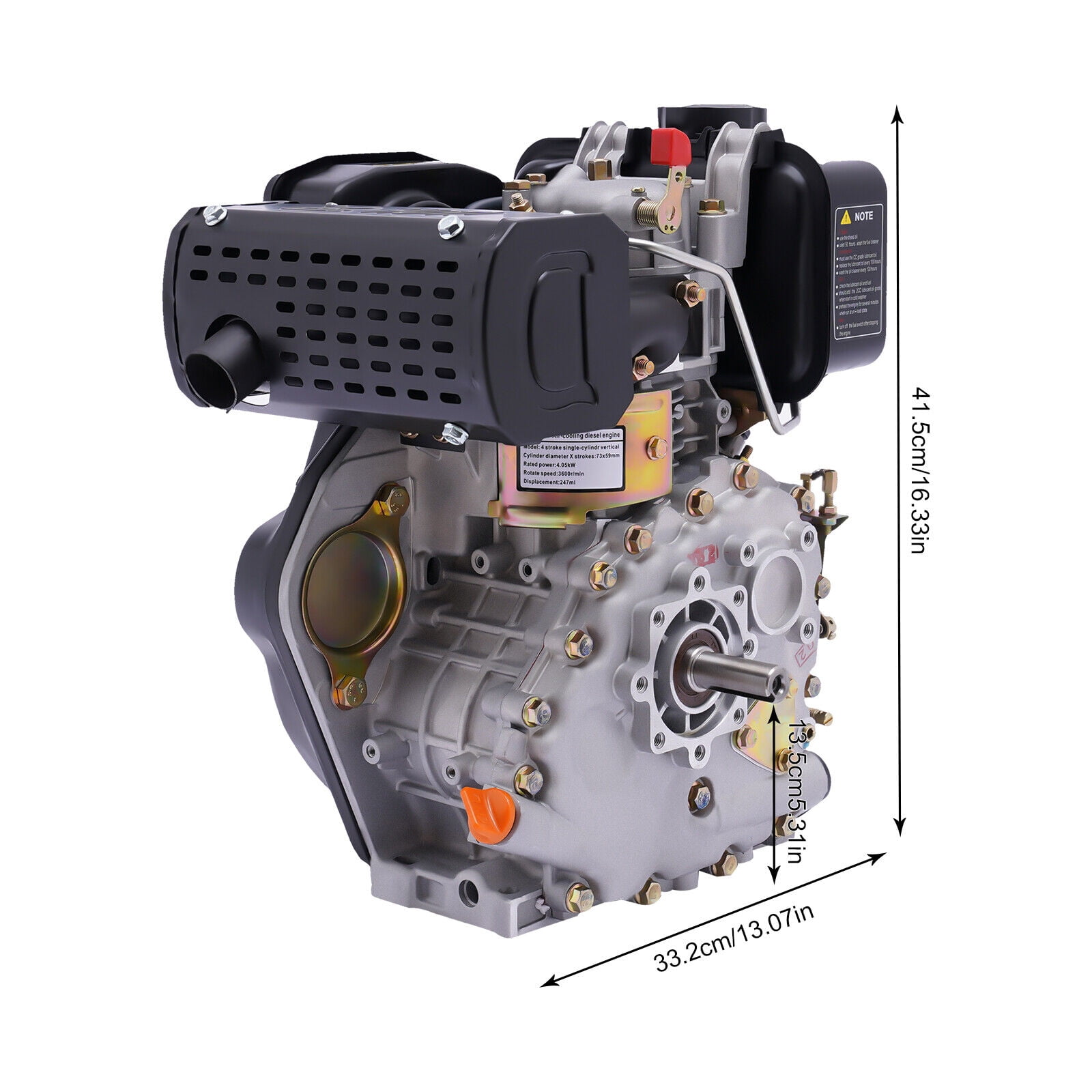

<p>Air-cooled Diesel Engine 4 Stroke Single Cylinder For Agricultural Machinery，The air-cooled diesel engine 4 stroke single cylinder with the direct injection fuel system has good atomization to achieve accurate fuel injection. Its thickened aluminum alloy box dissipates heat quickly and has light weight, which can protect the machine while saving your energy. It is suitable for road cutting machines, grinding machines, water pumps, micro tillers, air conditioning compressors, micro tillers, etc.It is suitable for road cutting machines, grinding machines, water pumps, micro tillers, air conditioning compressors, micro tillers, etc.</p> <p></p> <h2>Specification</h2> <p>Product Size: 33.5x38x41.5cm (13.2x14.96x16.3 inch)</p> <p>Package Size: 52x48x4cm (20.47x18.9x1.57 inch)</p> <p>Cylinder Diameter x Stroke: 73x59mm (2.95x2.32 inch)</p> <p>Net Weight: 27kg (59.5 lbs)</p> <p>Material: Aluminum Alloy Box</p> <p>System: Direct Injection Fuel System</p> <p>Rated Power: 3.6kw</p> <p>Displacement: 0.247 L (0.06gal)</p> <p>Fuel Tank Volume: 2.5 L (0.66gal)</p> <p>Rotation Direction: Counter-clockwise (Facing the Output Shaft)</p> <p>Cooling Mode: Air Cooling</p> <p>Lubrication Mode: Pressure Splash Compound Type</p> <p>Starting Mode: Hand Start</p> <p>Engine Speed: 3600r / min</p> <p>Fuel Consumption Rate: ≤ 280g / (kW. H)</p> <p>Oil Consumption Rate: ≤ 2.5g / (kW. H)</p> <p>Installation</p> <p>The product is easy to install. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.</p> <p>Package Included</p> <p>1 x Screw Driver</p> <p>1 x Connecting Plate Set Screw</p> <p>1 x 14-17mm Wrench</p> <p>1 x 10-12mm Wrench</p> <p>1 x Fixed Key</p> <p>1 x Screw Gasket</p> <p>1 x Diesel Engine</p> <p>Notes</p> <p>1. Please allow 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.</p> <p>2. This product is designed for use in the United States. If it is used in other regions or countries, an adapter or converter may need to be purchased in advance. Please check compatibility before purchasing.</p>
- Accurate Fuel Injection: The air-cooled diesel engine 4 stroke single cylinder with the direct injection fuel system has good atomization to achieve accurate fuel injection and save your fuel.
- Taking up Less Space: It has a compact structure and small size, which can take up less space than other engines.
- Light Material: The aluminum alloy box of the diesel engine is lighter than that of the gasoline engine, which saves your energy during operation.
- Quick Heat Dissipation: The box is made of aluminum alloy and has been strengthened and thickened so that it has a good heat dissipation effect to protect the machine.
- Large Capacity: Large diesel tank capacity can accommodate enough fuel at once, which is more time-saving.
- Saving Resources and Diesel: It has optimized the diesel system and intake and exhaust system to help you save more resources and diesel.
| Fuel type | Diesel |
|---|---|
| Features | Lightweight |
| Orientation | Vertical |
| Cooling system | Air |
| Weight | 59.5 lbs |
| Material | aluminum alloy box |
| Has written warranty | No |
| Stroke length | 59 mm |
| Assembled product height | 16.3" |
| Size | 335x380x415mm (13.2 * 14.96 * 16.3 inches) |
| Color | Black |
